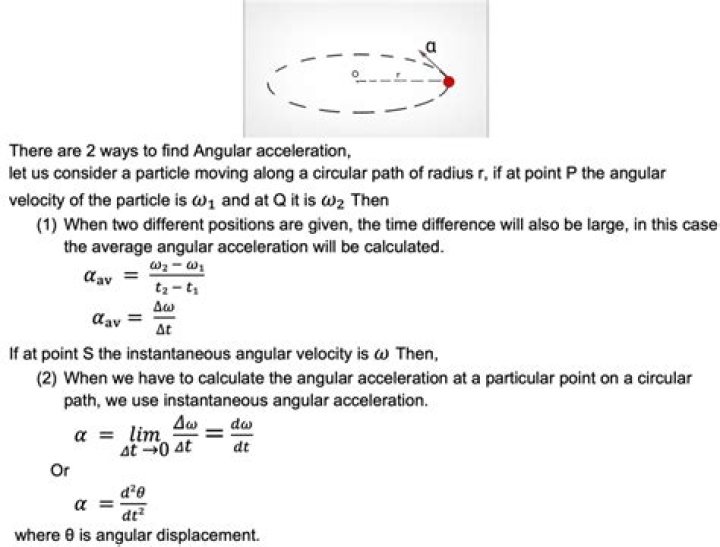

How do you find theoretical angular acceleration?
Angular acceleration (α) can be defined as angular velocity (ω) divided by acceleration time (t). Alternatively, pi (π) multiplied by drive speed (n) divided by acceleration time (t) multiplied by 30. This equation yields the standard angular acceleration SI unit of radians per second squared (Rad/sec^2).
What is angular acceleration in simple terms?
The angular acceleration is the time rate of change of the angular velocity and is usually designated by α and expressed in radians per second per second.
What is the relation between torque and angular momentum?
The torque is defined as the rate of change of angular momentum which is the same as the cross product of the linear force and the distance from the axis. So, the torque is the rate of change of angular momentum.
How do you find tangential acceleration?
The tangential acceleration = radius of the rotation * its angular acceleration. It is always measured in radian per second square. Its dimensional formula is [T-2].
How do you calculate angular acceleration and dynamics?
Angular acceleration is inversely proportional to mass. The equation τ = m(r^2)α is the rotational analog of Newton’s second law (F=ma), where torque is analogous to force, angular acceleration is analogous to translational acceleration, and mr2 is analogous to mass (or inertia ).
Is clockwise angular acceleration?
For example, a wheel’s rotation slows down if its angular velocity is counterclockwise (positive direction) and its angular acceleration is clockwise (negative direction). Slowing down is only possible if the angular velocity and acceleration have opposite signs.
What does a negative angular acceleration mean?
Negative angular velocity(ω) means that the particle is revolving anticlockwise. Thus, negative angular acceleration(α) is a “push” in the anticlockwise direction. If α and ω have the same sign, the body will speed up, else slow down (and eventually go in reverse).
How does torque relate to angular velocity?
The instantaneous power of an angularly accelerating body is the torque times the angular velocity: P=τω P = τ ω . There is a close relationship between the result for rotational energy and the energy held by linear (or translational) motion.
Why is torque perpendicular to angular momentum?
Key Points Torque is perpendicular to the plane formed by r and F and is the direction your right thumb would point if you curled the fingers of your right hand in the direction of F. The direction of the torque is thus the same as that of the angular momentum it produces.
How do you find angular acceleration from RPM?
The angular acceleration can be found directly from its definition inα=ΔωΔt α = Δ ω Δ t because the final angular velocity and time are given. We see thatΔω is 250 rpm andΔt is 5.00 s. α=ΔωΔt=250 rpm5.00 s. α = Δ ω Δ t = 250 rpm 5.00 s.
How do you find the acceleration?
Acceleration (a) is the change in velocity (Δv) over the change in time (Δt), represented by the equation a = Δv/Δt. This allows you to measure how fast velocity changes in meters per second squared (m/s^2). Acceleration is also a vector quantity, so it includes both magnitude and direction.
