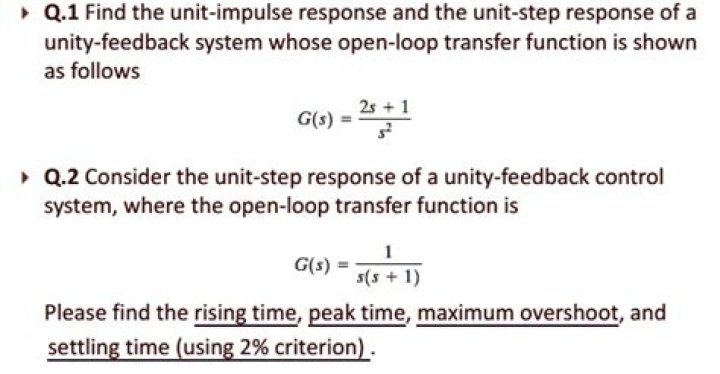

How do you find the unit step response from a transfer function?
To find the unit step response, multiply the transfer function by the unit step (1/s) and the inverse Laplace transform using Partial Fraction Expansion..
What is the function of step in Simulink?
Step (Simulink Reference) The Step block provides a step between two definable levels at a specified time. If the simulation time is less than the Step time parameter value, the block’s output is the Initial value parameter value.
How do you make a transfer function block in Simulink?
You can bring in transfer function objects defined in the MATLAB workspace into Simulink by using the LTI System block and specifying the variable name. A transfer function can also be represented in terms of simple blocks, such as integrators and gains, as shown.
What is meant by the step response of transfer system?
The step response of a system in a given initial state consists of the time evolution of its outputs when its control inputs are Heaviside step functions. In addition, the overall system cannot act until the component’s output settles down to some vicinity of its final state, delaying the overall system response.
What is the use of Simulink in Matlab?
Simulink provides a graphical editor, customizable block libraries, and solvers for modeling and simulating dynamic systems. It is integrated with MATLAB®, enabling you to incorporate MATLAB algorithms into models and export simulation results to MATLAB for further analysis.
How do you make a transfer function?
To find the transfer function, first take the Laplace Transform of the differential equation (with zero initial conditions). Recall that differentiation in the time domain is equivalent to multiplication by “s” in the Laplace domain. The transfer function is then the ratio of output to input and is often called H(s).
What does the step function do in Matlab?
step( sys , tFinal ) simulates the step response from t = 0 to the final time t = tFinal . The function uses system dynamics to determine the intervening time steps. step( sys , t ) plots the step response at the times that you specify in the vector t .
What is a transfer function Simulink?
A transfer function describes the relationship between input and output in Laplace (frequency) domain. Specifically, it is defined as the Laplace transform of the response (output) of a system with zero initial conditions to an impulse input.
What is the unit step sequence?
In discrete time the unit step is a well-defined sequence, whereas in continuous time there is the mathematical complication of a discontinuity at the origin. A similar distinction applies to the unit im- pulse. In discrete time the unit impulse is simply a sequence that is zero ex- cept at n = 0, where it is unity.
