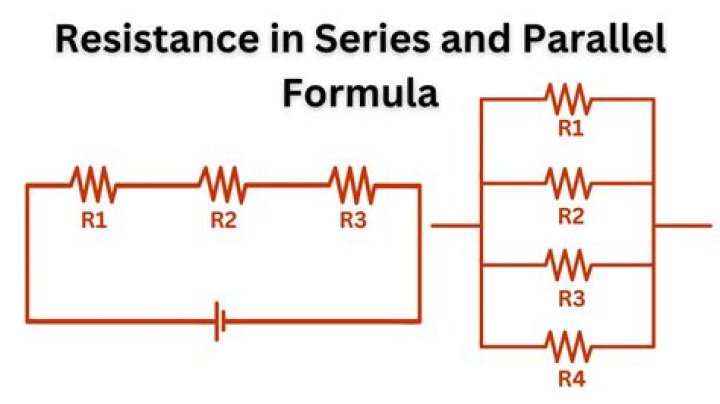

How do you find resistance in parallel and series?
To calculate the total overall resistance of a number of resistors connected in this way you add up the individual resistances. This is done using the following formula: Rtotal = R1 + R2 +R3 and so on. Example: To calculate the total resistance for these three resistors in series.
How do you calculate resistance in parallel?
You can find total resistance in a Parallel circuit with the following formula: 1/Rt = 1/R1 + 1/R2 + 1/R3 +… If one of the parallel paths is broken, current will continue to flow in all the other paths.
Does resistance increase in series or parallel?
In a series circuit, adding more resistors increases total resistance and thus lowers current. But the opposite is true in a parallel circuit because adding more resistors in parallel creates more choices and lowers total resistance. If the same battery is connected to the resistors, current will increase.
What is the difference between parallel and series resistance?
In a series circuit, the output current of the first resistor flows into the input of the second resistor; therefore, the current is the same in each resistor. In a parallel circuit, all of the resistor leads on one side of the resistors are connected together and all the leads on the other side are connected together.
What is a parallel resistance?
Resistors are in parallel if their terminals are connected to the same two nodes. The equivalent overall resistance is smaller than the smallest parallel resistor.
How do you convert series to parallel?
Below are the basic equations for creating a series representation of a given parallel RL circuit.
- Performing the conversion…
- Step 1: Calculate the equivalent resistance value Rs.
- Step 2: Calculate the equivalent inductive reactance Xs.
Are parallel or series circuits brighter?
Two loops, both connected to the battery, each with it’s own loads is called a Parallel Circuit. A series circuit is a Voltage Divider. Two bulbs in a simple parallel circuit each enjoy the full voltage of the battery. This is why the bulbs in the parallel circuit will be brighter than those in the series circuit.
How do you know if its parallel or series?
In a series circuit, all components are connected end-to-end, forming a single path for current flow. In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points.
What is difference between parallel and series?
In a parallel circuit, the voltage across each of the components is the same, and the total current is the sum of the currents flowing through each component. In a series circuit, every device must function for the circuit to be complete. If one bulb burns out in a series circuit, the entire circuit is broken.
What is series and parallel combination?
What is series combination?
In a series combination the electric components are connected end to end along a same line or ;when two or more resistances are connected end to end consecutively, they are said to be connected in series combination.
How do you calculate parallel resistance?
Parallel Circuits. Calculate parallel resistances using the following formula: 1 / R = 1/R1 + 1/R2 + 1/R3 + 1/Rn. Rn represents the total number of load resistances in parallel. Work out the resistances of identical resistors in a parallel circuit by taking the resistance of one of the resistors and dividing it by the number of resistors.
How do you calculate the total resistance of a parallel circuit?
The total resistance for the parallel circuit must be less than the resistance of any individual branch. Resistance is measured in ohms. Calculate the total resistance by dividing the total current from the voltage; this equation, I = V/R, is known as Ohm’s Law.
What is the formula for parallel resistance?
Parallel resistance is when the “in” side of 2 or more resistors are connected, and the “out” side of those resistors are connected. The equation for combining n resistors in parallel is: Req = 1/{(1/R1)+(1/R2)+(1/R3)..
What is the total resistance of a parallel circuit?
Total resistance in parallel circuits. A parallel circuit is a circuit in which the resistors are arranged with their heads connected together, and their tails connected together. The current in a parallel circuit breaks up, with some flowing along each parallel branch and re-combining when the branches meet again.
