How do you define endurance limit?

How do you define endurance limit?

The endurance limit (Se) of a material is defined as the stress below which a material can endure an infinite number of repeated load cycles without exhibiting failure.

What is the difference between endurance limit and endurance strength?

If the number of cycles are more than 10^(6), the corresponding endurance is called endurance limit. The maximum value of completely reversed bending stress that a material can withstand without any failure. If the number of cycles are less than 10^(6), the corresponding endurance is called endurance strength.

What is the difference between fatigue limit or endurance limit and fatigue strength?

The Fatigue refers to the failure of the machine component due to the repeated or cyclic loading. Whereas the fatigue strength or fatigue limit or Endurance limit is used to describe the material property that the cyclic load can be applied to the material without causing the failure.

Do composites have an endurance limit?

No. Carbon fiber composites have no fatigue limit, but that is not really the question to ask, since they do not behave like isotropic, hard (i.e., brittle) metals. Steel (titanium, too) has a fatigue limit, so fatigue failure can be avoided with it.

How the endurance limit of the component determined?

The value of the stress below which a material can endure an infinite number of repeated load application cycles without failure is known as the fatigue limit, or endurance limit. Once the sample is loaded in the test device, it is subjected to a specific alternating stress and tested to failure.

What is endurance limit Mcq?

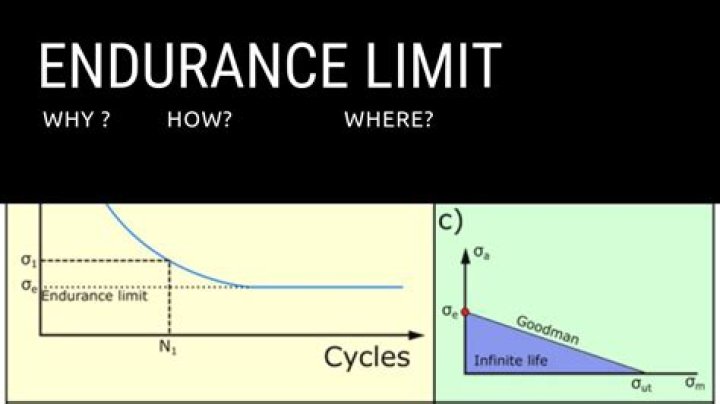

S-N Curve MCQ Question 1 Detailed Solution the fatigue life reduces with respect to the increase in stress range and at a limiting value of stress, the curve flattens off. The point at which the S-N curve flattens off is called the ‘endurance limit’.

Which material has endurance limit?

Fatigue

Which material will not have endurance limit?

This means that below this stress value, the material will never fail because of fatigue. This stress limit is known as the endurance limit. At the same time, aluminium does not have such properties and while it can last more cycles with a lower load, there is no endurance limit.

What is endurance limit discuss the different factors affecting endurance limit?

So, we can say that the endurance limit is not a true material property as it is found that endurance limit is affected by many factors such as surface finish, reliability, temperature, size etc.

How do you determine endurance limit?

Solution:

1. When the tensile strength is less than 200 kpsi (1400 MPa), the endurance strength = 0.5*tensile strength.
2. When the tensile strength is greater than 200 kpsi (1400 MPa), the endurance strength = 100 kpsi (700 MPa)

What is the maximum endurance limit of aluminum?

130 MPa
Explanation: Maximum endurance limit of aluminium is 130 MPa.

What cycle range is chosen for endurance limit?

What cycles range is chosen for endurance limit? Explanation: In nonferrous materials, non-effective fatigue limit is shown. The stress corresponding to 107 – 108 cycles is taken as endurance limit.
