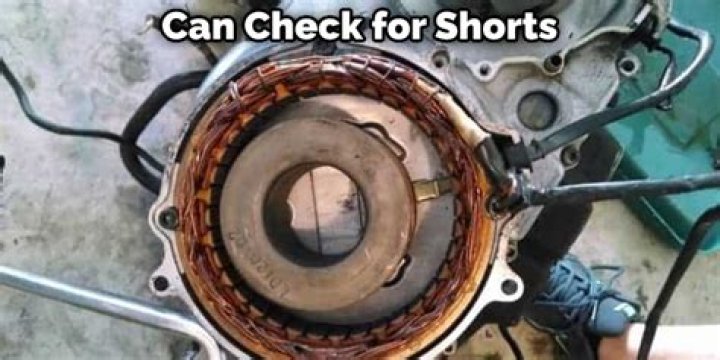

How do you check for a bad stator?
Insert each probe into a stator socket. You should read around 0.2 to 0.5 ohms. If you show an open circuit with the “Open” or infinity reading or have higher resistance, then the stator is bad and you must replace it. If these tests all produce positive results, then the stator itself is good.
What tests can be performed on a stator?
These additional tests include voltage withstand testing, insulation resistance, polarization index and dc winding resistance measurements, as well as inter turn fault detection. They assess not only the insulation integrity, but also help to identify connection problems and weak points in the stator winding.
How much voltage should a stator put out?
For each 1000-rpm, a 32-amp stator should have 18 volts AC (VAC) per it. It should be 36 VAC by 2000. 54 VAC is what it should be at 3000 RPM. Each system should produce a certain amount of electricity.
How do I know if my regulator rectifier is bad?
You’ll note signs right away like poor starts, fluctuating meter readings, and dimmed headlights. around 13 volts, the bike will start to drain the battery. When this happens, it’s only a matter of time before the engine stops completely.
What are the symptoms of a bad Rectifier?
Probably, the most common symptom associated with a bad regulator is flickering, dimming, or pulsing lights. To be more specific, you may notice that the vehicle’s: Headlights fluctuate between bright and dim, without you doing anything.
How do you test a stator with a test light?
Probe each stator pin with the test light one at a time. If the bulb lights when connected between any of the stator plug pins and ground the stator is shorted and needs to be replaced. If you get proper AC voltage and the stator is not grounded (no light) the stator and rotor are good.
Does a stator produce AC or DC?
The stator is the coil of wire housed inside the engine case. A magnet on a shaft spins within the stator, creating alternating current (AC). That current travels along fairly heavy gauge wire through the case and into the rectifier/regulator which converts it to DC power, and at a consistent output.
Can a bad stator drain a battery?
When a stator has gone bad, that means the motorcycle is running off of battery power alone which will quickly drain it. Batteries aren’t able to store AC current so the regulator/rectifier converts power into a type of current the battery can store.
