How do you calibrate a strain gauge load cell?
Strain gauge load cells should be calibrated by applying dead-weight loads or hydraulic piston loads monitored by a proving ring or reference load cell. Strain gauge torque transducers should be calibrated by applying dead-weight loads to a torque arm or by using a torque wrench calibration machine.
What is a problem with load cell systems as a level indicator?
When these load cell signals are not combined and summed properly at the weighing instrument, it can cause noticeable error. This can occur due to faulty connections between the load cells and the instrument. Corrosion from acids or salts can cause connections to corrode, thereby disrupting the signal.
What was the reason for the fluctuation of the load cell reading?
Load Cell Value Fluctuation Load cell values can fluctuate due to several reasons. From physical damage such as shock loading and overloading for a longer duration to environmental conditions such as temperature, moisture, water ingress, or corrosion, the load cell is likely to produce erroneous output.
Can load cells be calibrated?
Although load cells are accurate, these devices are prone to deterioration due to continuous usage and can provide inaccurate measurements. Then, use the calibration mode in your load cell to adjust the settings. Usually, there will be an option called Span Calibration.
How do you know if a load cell is bad?
Check if the load cell cable has any obvious signs of damage. Any cuts, crimps, excessive aberration or exposed wires is a sign of damage. Check load cell element for any dents, deformation, cracks, rippling of metal, corrosion, and significant wear in the area of loading.
Why do load cells need to be calibrated?
Load Cell Calibration is an adjustment or set of corrections that are performed on a load cell, or instrument (amplifier), to make sure that the sensor operates as accurately, or error-free, as possible. An offset means that the sensor output at zero load (true zero) is higher or lower than the ideal output.
How do I know if my load cell is damaged?

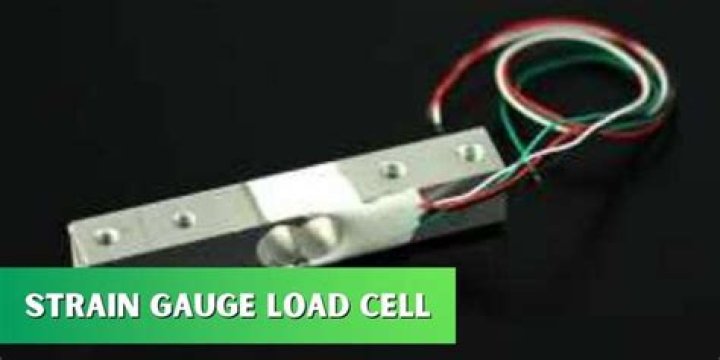

What is strain gauge load cell?
Strain gauge load cells usually feature four strain gauges in a Wheatstone bridge configuration, which is an electrical circuit that balances two legs of a bridge circuit. The force being measured deforms the strain gauge in this type of load cell, and the deformation is measured as change in electrical signal.
Do load cells wear out?
Unfortunately, all too frequently, load cells fail. They undergo events that may reduce their functionality because they are easily the most vulnerable part of a weighing or scale system. Figuring out what went wrong is just as important as knowing or learning how to fix it.
What is load calibration?
Load Cell Calibration is an adjustment or set of corrections that are performed on a load cell, or instrument (amplifier), to make sure that the sensor operates as accurately, or error-free, as possible. Every sensor is prone to measurement errors.
Is load cell repairable?
50kgf to 20ton or above also can be repaired. Weigh bridge load cell – double ended shear beam. – like model 65058, Weigh bridge load cell – cup and ball type.
What is the main purpose of strain gauge?
A strain gauge is a type of electrical sensor. It’s primary use is to measure force or strain. The resistance of a strain gauge changes when force is applied and this change will give a different electrical output. Strain gauges use this method to measure pressure, force, weight and tension.
