How do you calculate propeller pitch?
Each radius of the blade can have a different pitch and therefore the pitch at r/R = 0.7 is often used as a representative value (the nominal pitch). The pitch ratio of a propeller is the mean pitch divided by its diameter.
What is the pitch on a boat propeller?

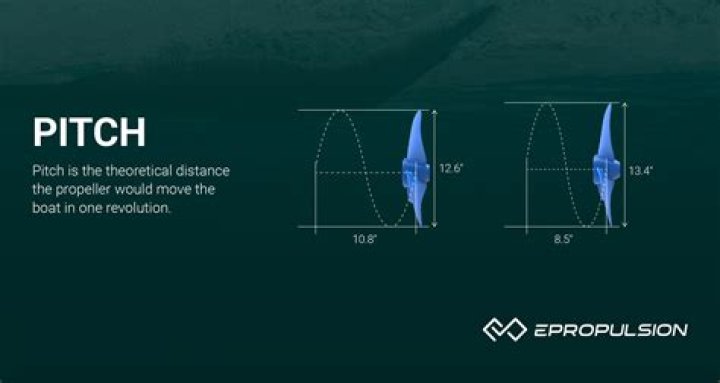

Propeller pitch is the distance the prop would move forward in one rotation if it were moving through a soft solid—think of a screw being turned into wood. The blades on a propeller are analogous to the threads on a screw.
What prop pitch makes a boat go faster?
Pitch measures the forward movement of the propeller’s blade during one complete revolution. This is measured in inches. Lowering prop pitch will increase acceleration and thrust. Increasing prop pitch will make the boat go faster (provided the engine has enough power to keep the RPMs in the optimum operating range.
What is the pitch ratio?
The ratio of the geometric pitch or another specified pitch of a propeller to the diameter of the propeller. It is expressed as a mathematical proportion, as in 1.4 to 1.
What is effective pitch propeller?
Effective Pitch is the actual distance a propeller advances in one revolution in the air. The effective pitch is always shorter than geometric pitch due to the air is a fluid and always slip. Forces and stresses acting on a propeller in flight.
What is coarse pitch propeller?
Coarse pitch occurs when the angle of attack is increased; the propeller is pushing more air, and generating more power at a lower RPM. Fine pitch occurs when angle of attack is decreased; the propeller is pushing less air and generating more power at a higher RPM.
How is pitch calculated?
How to Calculate Roof Pitch in Degrees
- First, you need to measure the run of your roof.
- Next, you need to figure out the rise.
- Now, divide the rise by the run.
- Then, divide 1 by your tangent.
- Finally, multiply this result by 180/π and you’ve calculated your roof pitch!
How do you convert slope to pitch?
If the slope is 4:12, the pitch for the 24-foot span is 1/6. If the pitch is 1/3, the slope is 8:12. Remember, slope is expressed as a ratio and in inches per foot. And pitch is a fraction derived by dividing the rise by the entire span.
What is blade pitch angle?
Blade pitch, often shortened to pitch, refers to the angle between the propeller blade chord line and the plane of rotation of the propeller. Blade pitch is most often described in terms of units of distance that the propeller would move forward in one rotation assuming that there was no slippage.
How do you calculate prop pitch on a boat?
Calculate the approximate pitch of the prop by dividing the number of RPMs indicated by the boat’s tachometer by the gear ratio of the boat’s gear box. Multiply the result by 1.2 and divide that result by the speed indicated on the boat’s speedometer. If the answer is not a whole number, round the answer up to the next largest whole number.
What pitch prop do I Need?
One recommendation is to buy a spare propeller that is two inches lower in pitch than your standard propeller. This reduction in pitch is perfect for tow sports, such as water skiing, due to a slower acceleration and higher power.
How much does prop diameter affect rpm?
A prop’s two dimensions each affect performance in different ways. For every inch of change in prop diameter the RPM varies by about 500 RPMs (up or down) and every inch of pitch changes the RPM by approximately 150 to 200 RPM.
What is propeller pitch ratio?
The pitch of a propeller divided by its diameter is a term called “pitch ratio.”. For example, a propeller of 20″ diameter and 20″ pitch has a pitch ratio of 1.0, a diameter of 20″ and pitch of 15″ a pitch ratio of .75, etc.
