How do you calculate flow rate in a pipe?
Flow rate is the volume of fluid per unit time flowing past a point through the area A. Here the shaded cylinder of fluid flows past point P in a uniform pipe in time t. The volume of the cylinder is Ad and the average velocity is ¯¯¯v=d/t v ¯ = d / t so that the flow rate is Q=Ad/t=A¯¯¯v Q = Ad / t = A v ¯ .

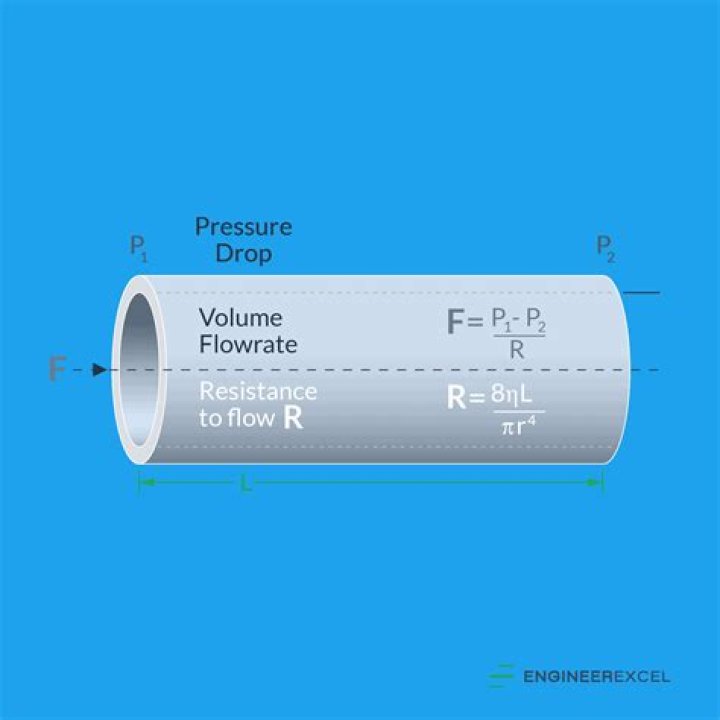

How do you calculate flow rate with pressure and pipe?
With a radius, for instance, of 0.05 meters, 0.05 ^ 2 = 0.0025. Multiply this answer by the pressure drop across the pipe, measured in pascals. With a pressure drop, for instance, of 80,000 pascals, 0.0025 x 80,000 = 200. Multiply the constant pi by the answer to Step 1: 3.142 x 0.0025 = 0.00785.
How much flow can a 6 pipe handle?
Water Flow Capacity in Steel Pipes (sch 40)
| Pipe Size | Maximum Flow (gal/min) | Head Loss (ft/100 ft) |
|---|---|---|
| 3″ | 130 | 3.9 |
| 4″ | 260 | 4.0 |
| 6″ | 800 | 4.0 |
| 8″ | 1,600 | 3.8 |
How do you calculate gpm of a pipe?
For the best accuracy measure the flow 3 or 4 times and average the times together. The formula to find GPM is 60 divided by the seconds it takes to fill a one-gallon container (60 / seconds = GPM). Example: The one-gallon container fills in 5 seconds, breakdown: 60 divided by 5 equals 12 gallons per minute.
What is one bar pressure in Litres per minute?
| bar/min/L/min flow rate conversion result | ||
|---|---|---|
| From | Symbol | Result |
| 1 | bar/min | 119.24 |
How many gallons per minute can a 4 inch pipe handle?
4-inch pipe: 3,400 gallons per minute.
How many GPM can a 1 inch pipe handle?
Metric PVC Pipe
| Assume Average Pressure. (20-100PSI) About 12f/s flow velocity | ||
|---|---|---|
| 1/2″ | .50-.60″ | 14 gpm |
| 3/4″ | .75-.85″ | 23 gpm |
| 1″ | 1.00-1.03″ | 37 gpm |
| 1.25″ | 1.25-1.36″ | 62 gpm |
How many GPM can go through a 2 inch pipe?
| Assume Average Pressure. (20-100PSI) About 12f/s flow velocity | ||
|---|---|---|
| 1.25″ | 1.25-1.36″ | 62 gpm |
| 1.5″ | 1.50-1.60″ | 81 gpm |
| 2″ | 1.95-2.05″ | 127 gpm |
| 2.5″ | 2.35-2.45″ | 190 gpm |
What’s the flow rate of a 3 inch pipe?
¾-inch pipe: 110 gallons per minute 1-inch pipe: 210 gallons per minute 2-inch pipe: 850 gallons per minute 3-inch pipe: 1,900 gallons per minute
How much water could you lose if a pipe burst?
So how much water could you lose if a pipe burst? Here are the average water flow rates based on typical municipal water lines: ½-inch pipe: 50 gallons per minute ¾-inch pipe: 110 gallons per minute
How many gallons of water per minute in a 4 inch pipe?
4-inch pipe: 3,400 gallons per minute. To give you an idea of size and scope, a 24-foot above-ground round pool, 5 foot deep, contains roughly 16,000 gallons of water. With a typical two-inch pipe for sprinklers that breaks, you could fill a pool in about 20 minutes.
How much water can flow through a pipe?
Assume Gravity to Low Pressure. About 6 f/s flow velocity, also suction side of pump Assume Average Pressure (20-100PSI). About 12 f/s flow velocity
How big is a 38 ” od Alpha pipe?
Scheduled Pipe Sizes 38”-144” OD Pipe Size O.D. in Inches STD XH 66 66 263.07 350.10 72 72 0.375 0.500 72 72 287.13 382.17 78 78 0.375 0.500
How big is a 30 inch steel pipe?
Pipe Dimensions and Weight PIPE O.D. IN PIPE O.D. IN 30 30.000 .312 98.93 .500 157.53 .625 196.08 32 32.000 .312 105.59 .500 168.21 .625 209.43 34 34.000 .312 112.25 .500 178.89 .625 222.78 36 36.000 .312 118.92 .625 236.13
How big is an OD pipe in inches?
Scheduled Pipe Sizes 38”-144” OD Pipe Size O.D. in Inches STD XH 46 46 182.90 243.20 48 48 0.375 0.500 48 48 190.92 253.89 54 54 0.375 0.500
Assume Gravity to Low Pressure. About 6 f/s flow velocity, also suction side of pump Assume Average Pressure (20-100PSI). About 12 f/s flow velocity
