How do you calculate bearing capacity of clay?

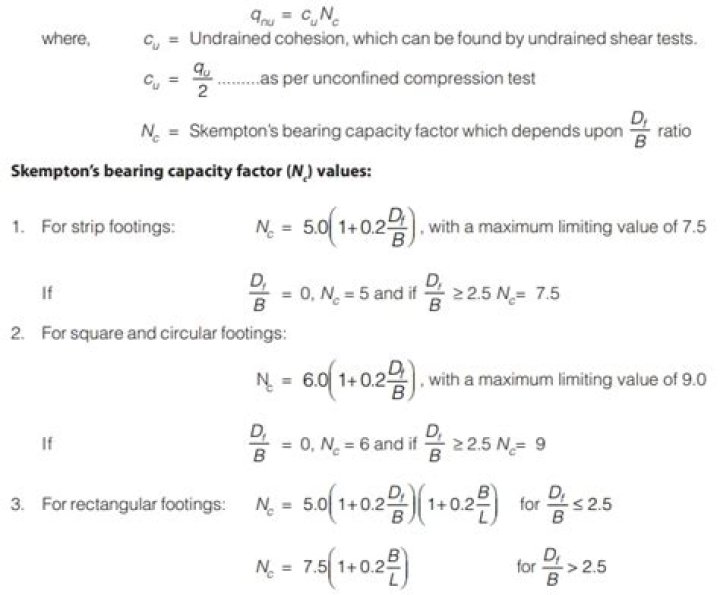

Qu = cNc, where c – shear strength of clay = qu/2 and Nc – bearing capacity factor..the consolidation settlement is calculated using the equation Se = cc/1+eo X H X log (stress increased due to construction = bearing capacity + soil effective overburden pressure/effective overburden pressure).
What is the bearing capacity of red soil?
Bearing capacity of soil is the maximum load per unit area. This is the ultimate bearing capacity of soil shown in table….Gopal Mishra.
| Types of Soil | Bearing Capacity (Kg/m2) | Bearing Capacity (kN/m2) |
|---|---|---|
| Loose gravel | 25000 | 250 |
| Medium clay | 25000 | 250 |
| Medium, compact and dry sand | 25000 | 250 |
| Compact clay | 45000 | 450 |
What is the formula of bearing capacity?
The ultimate bearing capacity formula is described as follows:(5) q = i c c N c + 1 / 2 i γ γ 1 B N γ + i q γ 2 D f N q (6) i c = i q = ( 1 − θ 9 0 ∘ ) 2 (7) i γ = ( 1 − θ ϕ ) 2 where θ is the inclination angle of the load with respect to the vertical plane.
What is the bearing capacity of clay?
Typical values of soil bearing capacity
| Soil type | Bearing value (kPa) | Remarks |
|---|---|---|
| Very stiff boulder clays and hard clays | 300 – 600 | Susceptible to long term consolidation settelement |
| Stiff clays | 150 – 300 | – |
| Firm clays | 75 -150 | – |
| Soft clays and silts | < 75 | – |
What is the load bearing capacity?
Loadbearing capacity is the maximum ability of a structural member or material to take loading before failure occurs. For example, before the onset of unacceptable bending.
What is allowable bearing capacity?
The allowable bearing capacity (qa) is the maximum bearing stress that can be applied to the foundation such that it is safe against instability due to shear failure and the maximum tolerable settlement is not exceeded.
What is soil bearing capacity?
In a nutshell, bearing capacity is the capacity of soil to support the loads that are applied to the ground above. It depends primarily on the type of soil, its shear strength and its density. It also depends on the depth of embedment of the load – the deeper it is founded, the greater the bearing capacity.
How do you measure soil bearing capacity?
Safe Bearing Capacity of Soil Testing Procedure:-
- Firstly Excavate a pit of required depth. ( preferably equal to the depth of foundation)
- Take a square cube of known weight and dimensions.
- Now drop the square-cube on the pit with a known height.
- Measure the impression made on the pit by square cube using the scale.
How is pile bearing capacity calculated?
Step 2: compute the ultimate end bearing capacity (acting as individual piles). Ultimate end bearing capacity in clay = Nc × C × pile tip area (Nc = 9). Ultimate end bearing capacity in soft clay = 9 × 120 × π × diameter2/4 = 848.2 lbs/per pile. Total ultimate bearing capacity per pile = 76,920 + 848.2 = 77,768 lbs.
How do you calculate loading capacity?
Calculating Load
- Add together the wattage capacity of all general lighting branch circuits.
- Add in the wattage rating of all plug-in outlet circuits.
- Add in the wattage rating of all permanent appliances (ranges, dryers, water heaters, etc.)
- Subtract 10,000.
- Multiply this number by .
- Add 10,000.
How do you calculate load bearing capacity of a brick wall?
It is assumed that the strength of brick- ferrocement composite wall can be determined by simply adding the brick strength component to the ferrocement component. In simple terms, ultimate load Pu is given by the following expression: Pu = P1 + P2 (1) where: P1 : load carrying capacity of brick wall.
How is pile capacity calculated?
