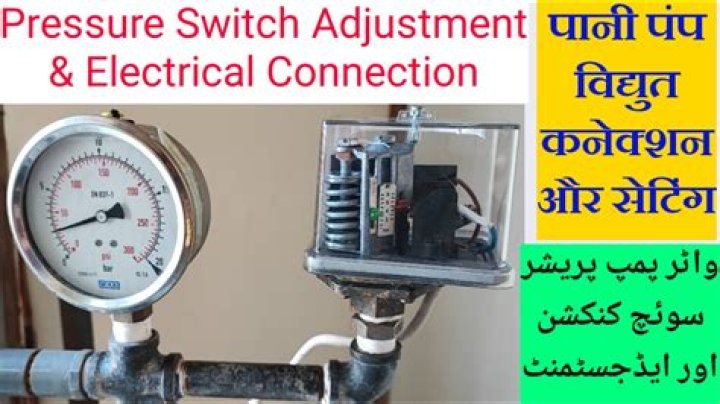

How do you adjust a pressure switch on a potter?

The operation point of the PS40 Pressure Switch can be adjusted to any point between 10 and 60 psi (0,7 – 4,11 bar) by turning the adjustment knob(s) clockwise to raise the actuation point and counter clockwise to lower the actuation point.

What does pressure switch do?

Pressure switches are important components for controlling the activation and deactivation of pumps in fluid systems when pressure thresholds are reached. They are also used in process control systems for maintaining steady pneumatic or mechanical pressure.

What is low pressure switch?

The low pressure switch monitors the refrigeration system for a loss of refrigerant charge, and may also be helpful in stopping the evaporator (indoor) coil from freezing up due to a dirty filter or low airflow over the coil. low pressure charge. If either one of these switches trip, the HVAC unit will shut down.

What is differential pressure switch?

A differential pressure switch is a device which utilizes a differential air pressure to actuate an electric switch at a pre-set actuation point. When a change occurs in the differential pressure between the two sides of the diaphragm, the spring loaded diaphragm moves, transmitting a force to a snap switch.

Where is the well pump pressure switch?

You’ll find the pressure switch mounted on a 1/4-in. tube near the pressure tank. It’s what senses when water pressure has dropped to the point where the pressure tank requires more water. The switch then powers up the well pump.

Where is the differential pressure switch located?

As a general rule, differential pressure switches should be mounted with diaphragm in a vertical plane. It is essential that set point be adjusted with diaphragm in the position in which it will be mounted.

Where do the wires go on a pressure switch?

Attach the power supply from the main breaker to the outside terminals marked “Line” (L1/L2). Attach the ground wire to the green ground screw. Re-install the switch cover and reconnect the power. Test the pressure switch for several cycles to ensure that it is working properly.
