How do interrupter levers work?

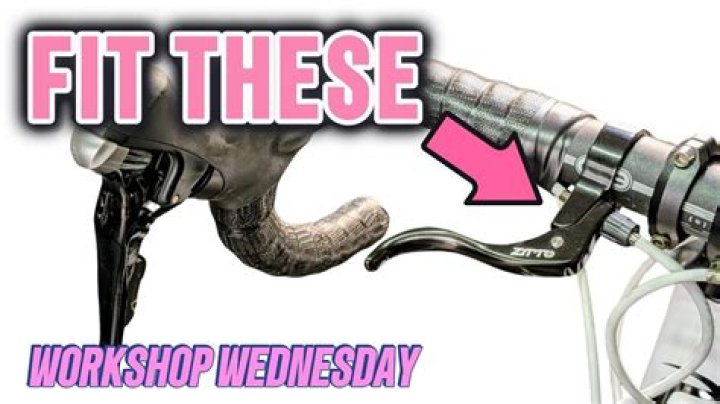

In-line levers are installed above the primary brake lever, and allow the rider to actuate the calipers while riding on the top part of the handlebar (Figure 1). The in-line lever pushes on the housing, effectively making it longer, which causes the brake caliper to close on the rim.
Why are they called suicide levers?
They have the nickname of suicide brakes for a reason. Because they are not pulling directly on the brake, rather pulling on something that pulls on the brake, you are not going to get the same stopping power you would if you used the primary braking mechanism.
How do you move the brakes on drop handlebars?
Starts here3:01How To Set Up And Adjust Your Brake Levers | GCN Maintenance MondayYouTubeStart of suggested clipEnd of suggested clip58 second suggested clipAnd then line it up with the bottom of the levers. You can raise your levers higher for easy accessMoreAnd then line it up with the bottom of the levers. You can raise your levers higher for easy access to the brakes. And the gears from the hoods. And lower them for easier access on the drops.
What are cantilever brakes on a bike?
A cantilever brake is a rim brake where each brake arm has the brake shoe and the cable attachment both on the same side of the support (the pivot). So that the cable can come from above the tire, the pivot must be below the brake shoe, attached to the frame.
What are non aero brake levers?
The most traditional style of brake lever for drop handlebars is called Non-Aero. The cable exits the brake lever body out of the top and makes a wide arc around the stem and handlebar before the first cable guide or brake stop.
What is a linear pull brake lever?
Linear-pull or v-brakes are an evolved version of cantilever brakes that provide more power through increased leverage. The brake lever is designed to pull more cable, and the brake arms are longer and at a different angle. V-brakes are a popular style of brake.
How can I make my brakes easier to pull?
A few drops of oil at all the brake pivot points will likely help and many brands of brakes allow for adjustment of the pivot point “tension” via a bolt, nut, or set screw. If you have cantilever brakes then the posts where they mount to the frame might need lubrication.
How do you get used to drop bars?
How to Get Comfortable With Drop Handlebars
- Check Bike Fit. To ride effectively in the drops you need to roll your hips forward, keeping the hip angle (between torso and thigh) open.
- Practice in Position.
- Be Flexible.
- Stretch Out.
Can you replace cantilever brakes?
It’s still possible to find some minor discrepancies between cantilever and V-brake braze-ons, but most of the time, they are fully interchangeable.
What is the difference between aero and non-aero brake levers?
Aero vs Non-Aero – Traditional style brake levers have the cable coming out the top of the lever (non-aero), while modern drop levers run the cables inside the bartape (aero). The aero design can look neater, however non-aero cabling is more direct and results in a smoother cable.
