How do I setup a SonicWall VPN client?

Configure WAN group VPN on the SonicWall appliance

1. Login to the SonicWall management GUI.
2. Click QUICK CONFIGURATION.
3. Select VPN Guide and click Next.
4. Select WAN Group VPN and click Next.
5. Select Use this preshared key, click Next.
6. Select the options for the security settings and click Next.

How do I connect to SonicWall IPSec VPN?

Configuring the IPSec VPN Tunnel in SonicOS

1. Define the VPN Policy and Specify the IKE Settings. Navigate to MANAGE > VPN > Base Settings. Under VPN Global Settings: Select Enable VPN.
2. Enable DPD, Packet Fragmenting, and NAT Traversal. Navigate to MANAGE > VPN > Advanced Settings. Under Advanced VPN Settings:

Which zone should you put the address object in for the remote VPN network?

When creating an Address Object, make sure the Zone is VPN. If the remote network has multiple network segments and you wish to include this in the VPN, create multiple Address Objects and create a group to add them to.

How do I connect my SonicWall Global VPN client?

Right-click the VPN connection policy icon in the SonicWALL Global VPN Client window and select Enable. Select the VPN connection policy and press Ctrl+B. Select the VPN connection policy, and click the Enable button on the toolbar in the SonicWALL Global VPN Client window.

How do I access SonicWall VPN?

1. Launch the Settings app and navigate to Network & Internet |VPN.
2. Under VPN, select Add a VPN connection.
3. In the Add a VPN connection window, select SonicWall Mobile Connect as the VPN provider.

How do I create a SSL VPN User in SonicWall?

To configure users in the local user database for SSL VPN access, you must add the users to the SSLVPN Services user group. Navigate to the Users > Local Users page. Click on the Configure icon for the user you want to edit, or click the Add User button to create a new user. The Edit User or (Add User) dialog displays.

How do you configure a site to site VPN tunnel between a SonicWall and FortiGate?

Configure the SonicWall Device

1. Go to Network > Address Objects.
2. Select Add and enter the following: Name: FortiGate_network. Zone Assignment: VPN. Type: Network. Network: FortiGate IP address. Netmask: FortiGate netmask.
3. Select OK.

How do I create a site to site VPN tunnel in SonicWall?

1. Login to the Site B SonicWall appliance and Click Manage in the top navigation menu. Click VPN | Base Settings page and Click Add button.
2. Click General tab. Select IKE using Preshared Secret from the Authentication Method menu.
3. Click Network tab.
4. Click the Proposals tab.
5. Click Advanced tab.

What is aggressive mode VPN?

Aggressive Mode uses a three-way handshake where the VPN sends the hashed PSK to the client in a single unencrypted message. This is the method usually used for remote access VPNs or in situations where both peers have dynamic external IP addresses.

What type of VPN is SonicWall Global VPN client?

About SonicWall Global VPN Client The SonicWall™ Global VPN Client creates a Virtual Private Network (VPN) connection between your computer and the corporate network to maintain the confidentiality of private data.

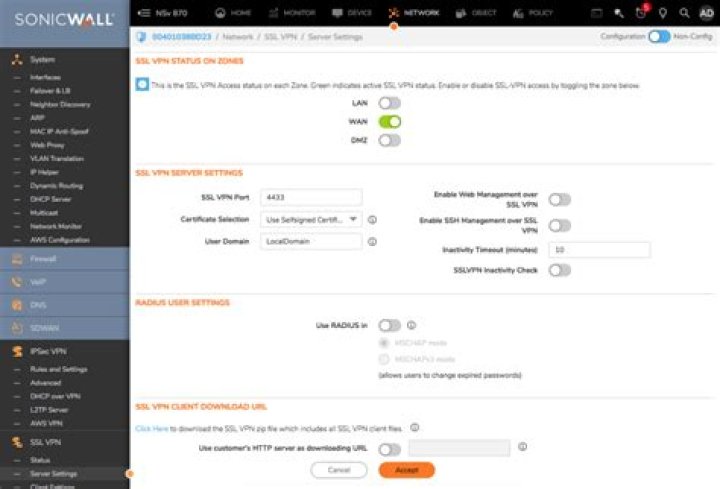

How do I access SSL VPN?

Objectives

1. Specify an address range for SSL VPN clients.
2. Create a user group for SSL VPN clients and add a user.
3. Define a local subnet and remote SSL VPN range.
4. Add an SSL VPN remote access policy.
5. Add a firewall rule.
6. Download the SSL VPN client software from the client and connect to the internal network.
