How do I manually configure a Cisco IP Phone 7940?

How do I configure my Cisco 7940/7960 for SIP service?

  1. Press the Settings key. The Settings menu is displayed.
  2. Highlight Status.
  3. Press the Select soft key. The Setting Status menu is displayed.
  4. Highlight Firmware Versions.
  5. Press the Select soft key. The Firmware Versions panel is displayed.

How do I change the IP address on my Cisco IP Phone?

Cisco Unified IP Phone Setup Menus. Ethernet Setup Menu….Set IP Address Field

  1. Set the DHCP Enabled option to No.
  2. Scroll to the IP Address option, press Select, and enter a new IP Address.
  3. Press Apply.

How do I unlock my Cisco IP Phone 7940?

To get to the unlock config screen, press the “Settings” button, scroll down to “Unlock Config”, and press the “Select” softkey. You will now be asked to enter the password. The default password is “cisco”. As you need to enter this password via the numeric pad, it should be entered as 222444777722266.

How do I register my Cisco IP Phone?

  1. Step 1 In Cisco Unified Communications Manager Administration, select Device > Phone, then click Add New.
  2. In the Add a New Phone window, select your phone model in the Phone Type field, then click Next.
  3. In the Phone Configuration window, select the protocol type for your device in the Select the device protocol.

How do I setup a 5 static IP address?

Go to to access the router settings.

  1. Select Broadband.
  2. Select sub-tab Link Configuration.
  3. Put a check next to Add Additional Network.
  4. From there put in your router address and subnet mask for your static IP block. *
  5. Check Auto Firewall Open.
  6. Click Save.

How do I unlock my Cisco 7960 IP phone?

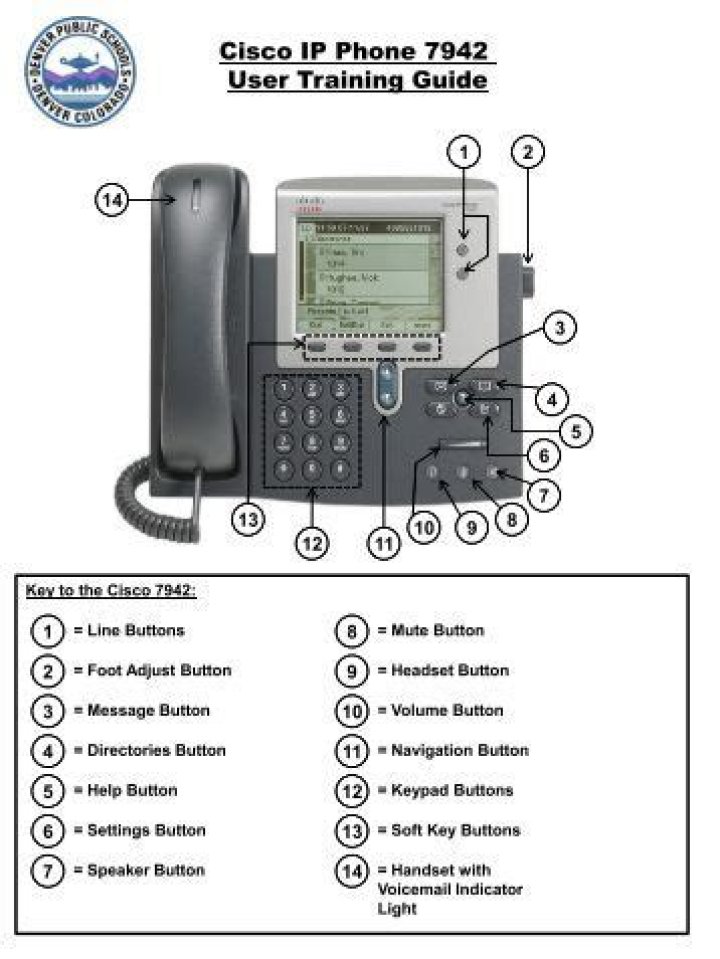

How do I setup my Cisco phone 7942?

TFTP Changes for Cisco 7942 and 7962 Phones

  1. Press the Settings button on the telephone.
  2. Select Network Configuration from the menu that appears.
  3. In the Network Configuration menu, scroll down to select the Alternate TFTP option.
  4. If Alternate TFTP is set to No, go to step 5.
  5. Press * * # and then set to Yes.

How do I setup my Cisco IP Phone 7912?

Cisco-7912 IP-phone setup

  1. UID: Your sip number (for example 111111) from personal account.
  2. PWD: Your password from personal account.
  3. Proxy: sip.zadarma.com.
  4. UID: Internal PBX number (for example 1234-100) from personal account.
  5. PWD: Password of internal PBX number from personal account.
  6. Proxy: pbx.zadarma.com.

How do I connect my Cisco IP phone to my network?

Using the Phone’s Network Configuration Screen (Cisco IP Phone Models 7905G/7912G) Step 1 Press the Menu button. Step 2 Use the Navigation button to select Settings, and then press the Select softkey. Step 3 Use the Navigation button to select Network Configuration, and then press the Select softkey.
