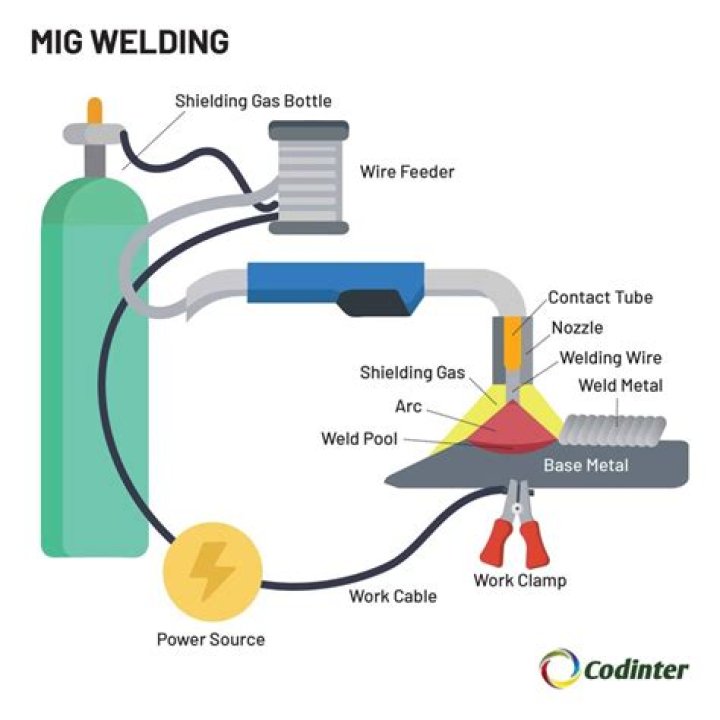

How do I get more penetration when MIG welding?
Amperage – Amperage is the determinant factor when it comes to penetration. This is very simple, the higher the amperage the deeper the penetration. In mig welding we increase the amperage by increasing wire feed speed.
How much penetration do you need for MIG welding?
100% penetration is necessary for full strength on butt weld joints, for fillet welds penetration into the root is important but 100% is not practical. for thick to thin butt welds, penetration and cross sectional thickness of at least the thinner member is usually the goal.
What causes lack of penetration in MIG welding?
Cause: One of the most common causes is improper surface conditions. For example, if you haven’t cleaned the surface and there was oil, rust or dirt left on it, it will prevent proper weld penetration, leading to porosity. Other welding processes, such as SMAW and FCAW have better tolerance to surface contaminants.
Which type of welding is used for high penetration?
Keyhole welding (deep penetration welding) uses a high-output laser for high-speed welding. The narrow, deep penetration allows for uniform welding of internal structures. Because the heat-affected zone is small, distortion of the base material due to welding can be minimized.
How do you know if you have good weld penetration?
A good stick weld will be straight and uniform. The thickness won’t change drastically and there won’t be drops of spatter. There are no holes, breaks, or cracks in the bead. You can tell a stick weld is sub-par if there’s visible spatter, cracking, undercutting, breaks in the bead, or an inconsistent bead width.
What is full penetration weld?
A full penetration weld is a type of weld that has completely consumed the root of the joint. A full penetration weld is often a requirement for joints that will be subjected to high stresses because it typically has higher strengths than a partial penetration weld.
What is penetration in MIG welding?
Depth of fusion (aka “penetration”) is the distance that fusion extends into the base metal or previous pass from the surface melted during welding.
How much penetration is good for welding?
If you want to have a thick weld, a full or complete weld penetration is the best bet. You can use different weld passes to bevel and penetrate the weld. Nonetheless, you can attain penetration without a groove bevel in joints with 0.20 inches or greater thickness.
