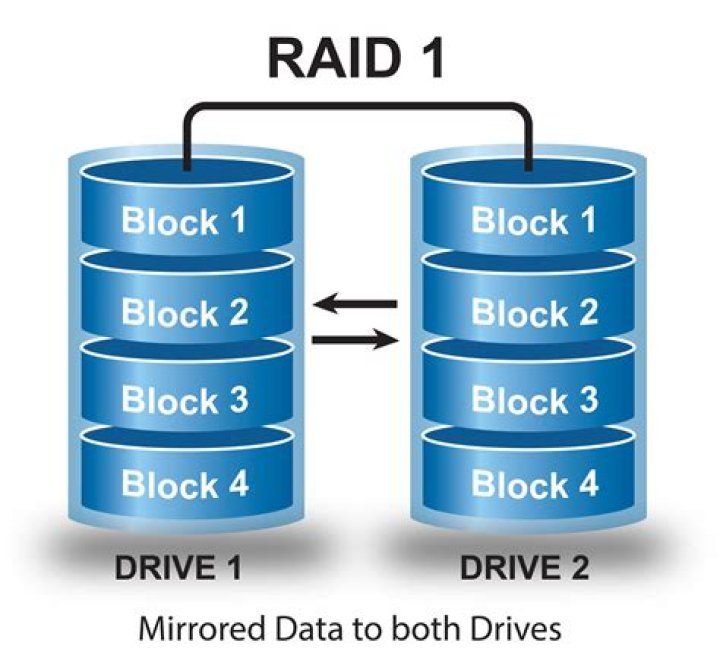

How do I create a RAID 1 with existing disk?

1 Answer

  1. First prepare the disk with gdisk since fdisk can not do a partition larger than 2TB.
  2. Run sudo mdadm –create –verbose /dev/md0 –force –level=1 –raid-devices=1 /dev/sdb1 .
  3. Format the newly created RAID partition and copy everything from the original disk to this partition.

How do I setup a RAID 1 server?

Open the Intel Rapid Storage Technology software, and choose Create from the list of options at the top:

  1. Under Select Volume Type, choose RAID 1 and click Next:
  2. On the Configure Volume settings, input the name you wish to give the RAID volume.
  3. On the Confirm Volume Creation screen select Create Volume:

How do you create a RAID array?

To Create a RAID Array

  1. Power-cycle your server.
  2. During power up, type Ctrl-A to bring up the ARCU.
  3. Select Array Configuration Utility.
  4. Select Initialize Drives.
  5. Select drives to initialize.
  6. When you have selected all the drives to be initialized, press Enter.
  7. Type yes.
  8. Select Create Array from the main menu.

Can I add RAID1 later?

Yes, you CAN migrate your single drive volume to a 2 drive RAID1 volume at a later point.

Does create a RAID1 without losing data?

Re: Create a new RAID 1 with existing hard drive without losing data. It depends. If the dis currently is a RAID0 you can extend to RAID1, if it is a plain disk you need to backup and restore.

How do I create a RAID 1 program in Windows 10?

Configuring RAID in Windows 10

  1. Type or paste ‘Storage Spaces’ into Search Windows.
  2. Select Create a new pool and storage space.
  3. Select the RAID type under Resiliency by selecting the drop down menu.
  4. Set the drive size under Size if necessary.
  5. Select Create storage space.

How do I setup RAID 1 on Mac?

How to:

  1. Open Disk Utitlity (Finder > User > Applications > Utilities).
  2. Format each disk you want to use in your RAID set to ‘Mac OS X Extended (Journaled).
  3. Select one of the disks you want to use in your RAID.
  4. Select ‘RAID’ tab in the main portion of the window.
  5. Name your RAID in the ‘RAID Set Name’ text box.

How do I create a RAID partition in Linux?

Configuring the RAID

  1. Once you have completed your partitioning in the main “Partition Disks” page select “Configure Software RAID”
  2. Select “Yes”
  3. Select “Create new MD drive”
  4. Select RAID type: RAID 0, RAID 1, RAID 5 or RAID 6.
  5. Number of devices.
  6. Number of spare devices.
  7. select which partitions to use..
