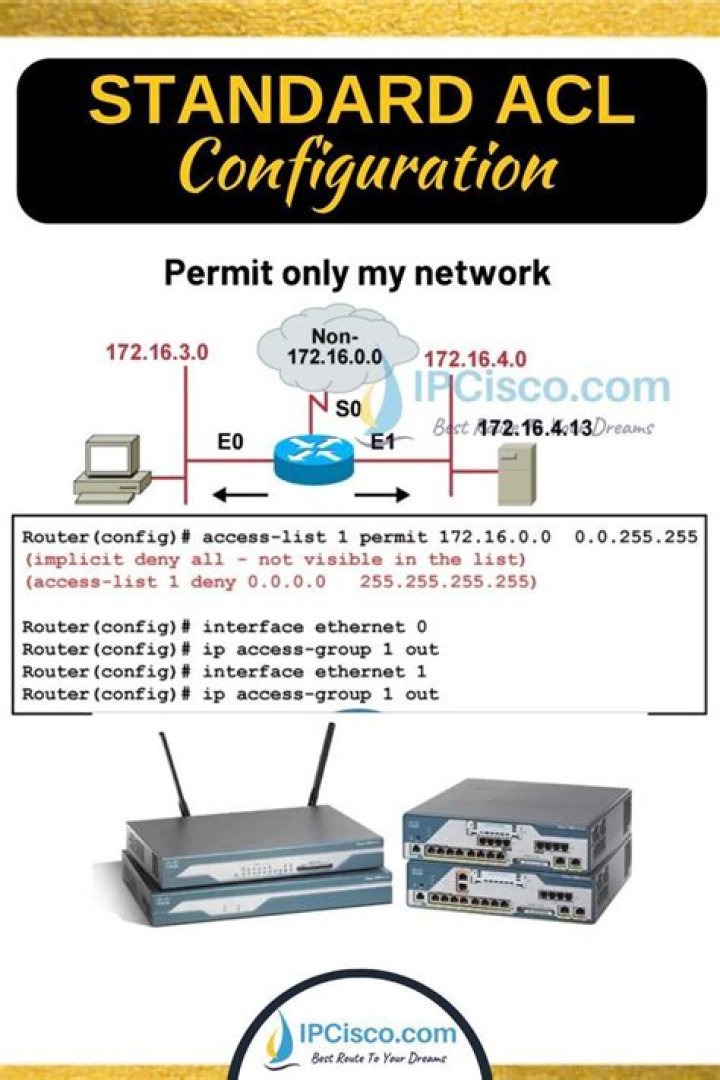

How do I configure a standard ACL on a Cisco router?

ACL number for the standard ACLs has to be between 1–99 and 1300–1999. Once the access list is created, it needs to be applied to an interface. You do that by using the ip access-group ACL_NUMBER in|out interface subcommand. in and out keywords specify in which direction you are activating the ACL.

How do you build an ACL?

To Configure ACLs

  1. Create a MAC ACL by specifying a name.
  2. Create an IP ACL by specifying a number.
  3. Add new rules to the ACL.
  4. Configure the match criteria for the rules.
  5. Apply the ACL to one or more interfaces.

How do I configure my ACL router?

An ACL is a list of permit or deny rules detailing what can or can’t enter or leave the interface of a router. Every packet that attempts to enter or leave a router must be tested against each rule in the ACL until a match is found. If no match is found, then it will be denied.

How do you check ACL on Cisco router?

To control access to an interface, use the ip access-group command in interface configuration mode. Access lists filter either inbound or outbound traffic based on the ip access-group options of in or out . To display the contents of current access lists, use the show access-lists privileged EXEC command.

Where is the standard ACL located?

– Standard ACLs are placed as close to the destination as possible. – Standard ACLs filter packets based on the source address only so placing these ACLs too close to the source can adversely affect packets by denying all traffic, including valid traffic.

What is the effect of configuring an ACL with only ACEs that deny traffic?

Question: What is the effect of configuring an ACL with only ACEs that deny traffic? The ACL will permit any traffic that is not specifically denied. The ACL will block all traffic.

How is ACL wildcard calculated?

To calculate the wildcard mask, subtract the subnet mask (that is, 255.255. 255.0) from 255.255. 255.255, as shown in Table 4-6. The solution produces the wildcard mask 0.0.

What is ACL rule?

ACLs are a collection of permit and deny conditions, called rules, that provide security by blocking unauthorized users and allowing authorized users to access specific resources. ACLs can block any unwarranted attempts to reach network resources. The WAP device supports up to 50 IPv4, IPv6, and MAC ACL rules.

How do I check the ACL on my router?

Use the show interfaces command to see a list of all interfaces currently configured on the router.

Is your ACL a ligament or tendon?

The anterior cruciate ligament (ACL) is one of the key ligaments that help stabilize your knee joint. The ACL connects your thighbone (femur) to your shinbone (tibia). It’s most commonly torn during sports that involve sudden stops and changes in direction — such as basketball, soccer, tennis and volleyball.

What are the permit or deny statements in an ACL called?

An ACL uses a sequential list of permit or deny statements known as access control entries (ACEs). ACEs are also commonly called ACL statements.

Where is the best location to place a standard ACL?

Standard ACL “Should be placed closest to the destination network.” because it filter traffic base on the source IP address. As ACL work in sequence, when standard ACL is placed closest to the source it may stop the host to access other resources in the network that you do want to stop.

How to configure ACL on a Cisco router?

1 config t Enter configuration commands, one per line. 2 CONFIGURE ACL TO ALLOW OR DENY CERTAIN IP AS MENTIONED IN ABOVE TOPOLOGY NETWORK DIAGRAM. 3 NOW IT’S TIME TO APPLY ACCESS LIST ON CORRECT INTERFACE. …

How are IP Access Control Lists ( ACLs ) used?

This document describes how IP access control lists (ACLs) can filter network traffic. It also contains brief descriptions of the IP ACL types, feature availability, and an example of use in a network.

How to create ACL to block http-Cisco community?

Okay well 192.168.10.1 is not a network and your diagram isn’t showing any other hosts. Change the “host 192.168.10.10” to “192.168.10.0 0.0.0.255” in both the acl lines. Note though this won’t stop you being able to connect from the router itself but then you don’t connect to a web server from routers normally.

How does a reflexive ACL work in a router?

Reflexive ACLs are also referred to as IP session ACLs. These type of ACLs, filter traffic based on upper layer session information. They react to sessions originated inside the router to whether permit outbound traffic or restrict incoming traffic. The router recognizes the outbound ACL traffic and creates a new ACL entry for the inbound.

1 config t Enter configuration commands, one per line. 2 CONFIGURE ACL TO ALLOW OR DENY CERTAIN IP AS MENTIONED IN ABOVE TOPOLOGY NETWORK DIAGRAM. 3 NOW IT’S TIME TO APPLY ACCESS LIST ON CORRECT INTERFACE.

This document describes how IP access control lists (ACLs) can filter network traffic. It also contains brief descriptions of the IP ACL types, feature availability, and an example of use in a network.

How to configure a deny statement in an ACL?

Deny or permit a specific source based on address and wildcard mask. Some routing devices, such as Cisco, configure an implicit deny statement at the end of each ACL by default. Specify whether deny/permit IP, IPX, ICMP, TCP, UDP, NetBIOS, and more. Define the Source or Destination target as a Single IP, a Address Range (CIDR), or all Addresses.

How to identify an ACL entry using a number?

Identify an ACL entry using a number. Define an ACL entry using a name. Instead of using a sequence of numbers, some routers allow a combination of letters and numbers. Some Routers allow you to add comments into an ACL, which can help you to add detailed descriptions. Deny or permit a specific source based on address and wildcard mask.
