How do I change the series legend in Excel?

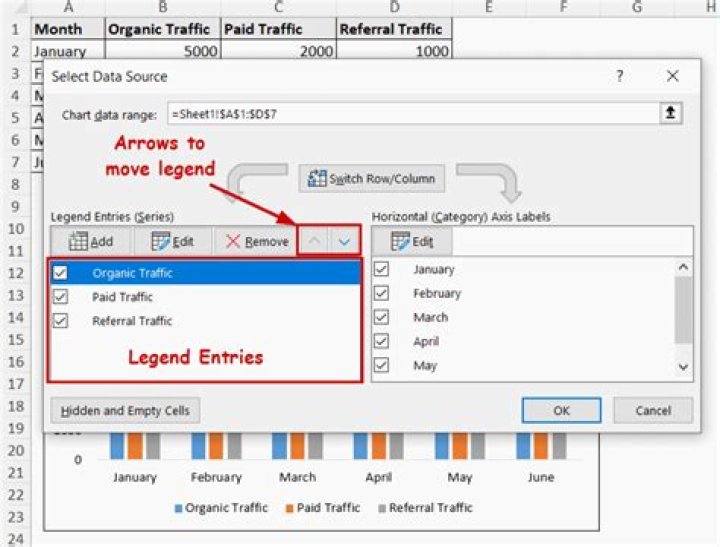

On the Design tab, in the Data group, click Select Data. In the Select Data Source dialog box, in the Legend Entries (Series) box, select the legend entry that you want to change. Click Edit. Tip: To add a new legend entry, click Add, or to remove a legend entry, click Remove.

How do you change the series name in Excel 2007?

Rename a data series

  1. Right-click the chart with the data series you want to rename, and click Select Data.
  2. In the Select Data Source dialog box, under Legend Entries (Series), select the data series, and click Edit.
  3. In the Series name box, type the name you want to use.

How do I change the axis values in Excel 2007?

Click the x-axis or y-axis directly in the chart or click the Chart Elements button (in the Current Selection group of the Format tab) and then click Horizontal (Category) Axis (for the x-axis) or Vertical (Value) Axis (for the y-axis) on its drop-down list. Be sure to select the axis values, not the axis title.

How do I change the series name in Excel charts?

How to rename Data Series in Excel graph or chart

  1. Open the Excel spreadsheet to find the chart.
  2. Select the chart.
  3. Right-click on it and choose the Select Data option.
  4. Select the data series from the Legend Entries box.
  5. Click the Edit button.
  6. Enter the new name in the Series name box.
  7. Enter the Series values if required.

How do I add a series in Excel?

Adding a Series to an Excel Chart

  1. Click the chart to enable the Chart Tools, which include the Design and Format tabs.
  2. Click the “Design” tab, and then click “Select Data” from the Data group.
  3. Click “Add” from the “Legend Entries (Series)” section.
  4. Enter a name for the new data in the Series Name field.

How do I add a legend in Excel without charts?

Hiding the legend from Chart 1 is simple and can be accomplished as follows:

  1. Single click on the chart.
  2. Select Chart | Chart Options. Excel displays the Chart Options dialog box.
  3. Click on the Legends tab.
  4. Clear the Show Legend check box.
  5. Click OK.

How do I customize a chart in Excel?

Select the chart and go to the Chart Tools tabs (Design and Format) on the Excel ribbon. Right-click the chart element you would like to customize, and choose the corresponding item from the context menu. Use the chart customization buttons that appear in the top right corner of your Excel graph when you click on it.

How do I change the series formula in Excel?

The procedure is straightforward:

  1. Click on the series to be copied.
  2. Select the entire series formula.
  3. Copy (Ctrl-C)
  4. Select the chart’s Plot Area.
  5. Paste (Ctrl-V)
  6. Edit this formula now, or anytime later.
  7. Press Enter.
  8. Repeat as necessary.

How do I change the increment in an Excel chart?

To adjust the scale of a graph, right-click on the vertical axis of the graph, just where you see the values. Select ‘Format Axis’, after which you’ll see a pane with additional options appear on the right. In ‘Axis Options’, we can set the graph bounds and units as needed.

How do I add a legend to a chart in Excel?

Click the chart, and then click the Chart Design tab. Click Add Chart Element > Legend. To change the position of the legend, choose Right, Top, Left, or Bottom. To change the format of the legend, click More Legend Options, and then make the format changes that you want.

How do I edit a chart in Excel?

Edit data included in a chart

  1. Click the chart.
  2. On the Charts tab, under Data, click the arrow next to Edit, and then click Edit Data in Excel.
  3. To change the number of rows and columns that are included in the chart, rest the pointer on the lower-right corner of the selected data, and then drag to select additional data.

How do I manually add a legend in Excel?
