How deep do pad foundations need to be?
1 m
For low-rise buildings, it is generally recommended to limit the overall depth of a pad foundation to 1 m from ground level. When designing the pad, care should be taken to ensure that it is large enough to prevent tension within the concrete, which could result in cracking and failure.
What is pad construction?
Instead, as the name suggests, they are formed by “pads”. These are pieces of concrete, that can be shaped as rectangles, circles, or squares, which subsequently support single-point loads including structural columns or framed structures.
When would you use pad foundations?
Pad foundations are used to support an individual point load such as that due to a structural column. They may be circular, square or reactangular. They usually consist of a block or slab of uniform thickness, but they may be stepped or haunched if they are required to spread the load from a heavy column.
Why pad foundations are used?
Foundations which carry and spread concentrated loads to the soil from superstructures is called pad foundation . They are usually placed to transfer point loads from the column or framed structures and consists of a concrete block or concrete pad. Pad foundations are also used to support ground beams.
Why are pad foundations used?
What are pad foundations used for?
How do I choose the right foundation?
Selection of Type of Foundation
- Adequate depth. The foundation must have an adequate depth to prevent frost damage.
- Bearing capacity failure. The foundation must be safe against a bearing capacity failure.
- Settlement.
- Quality.
- Adequate strength.
- Adverse soil changes.
- Seismic forces.
How to design and build a pad foundation?
Design of Pad Foundation 1 Geotechnical Design of Pad Foundation. The geotechnical design of a pad foundation can be carried out according to the requirements of EN 1997-1:2004 (Eurocode 7). 2 Example on the Structural Design of Pad Foundation. 3 Structural Design Example of Pad Foundation. 4 Detailing sketches of pad foundation
What’s the best way to build a foundation?
Have your lot surveyed. This is to determine and locate the actual corners of the foundation so the entire foundation can be formed. Start digging. Your excavation contractor carries out this step in the process. Install the footings. Keep in mind that you may be pouring concrete into wood forms or directly into trenches to create the footings.
What’s the best way to build a concrete pad?
If you are building a large pad — one intended to support walls and a roof — dig a trench along the perimeter of the pad, which provides a foundation strong enough to hold up these structures. Forms hold wet concrete right where you want it during pouring. Build them along the outside edge of where the pad will be.
When to use geo and str in a pad foundation?
In the design of pad foundation using DA1, there are two sets of limit state combinations for STR and GEO limit states. Combination 1 is normally used for the structural design of the foundation, while combination 2 is normally used for sizing the foundation.
If you are building a large pad — one intended to support walls and a roof — dig a trench along the perimeter of the pad, which provides a foundation strong enough to hold up these structures. Forms hold wet concrete right where you want it during pouring. Build them along the outside edge of where the pad will be.
How are base pads arranged in a foundation?
The pad foundation arrangement is mainly dependent on the load bearing capacity of the soil, the structure to be supported, available space and the imposed loads. Based on these factors the “pads” can be arranged as: Base pads that are balanced. This will supposed more than one point loads
The overview of how to build a foundation for a house is similar to what is necessary to build a foundation for other structures, such as a detached garage. As with any type of construction, obtain any necessary permits before beginning a project. Layout the area for the foundation and mark the perimeter.
When do you need a deep pad foundation?

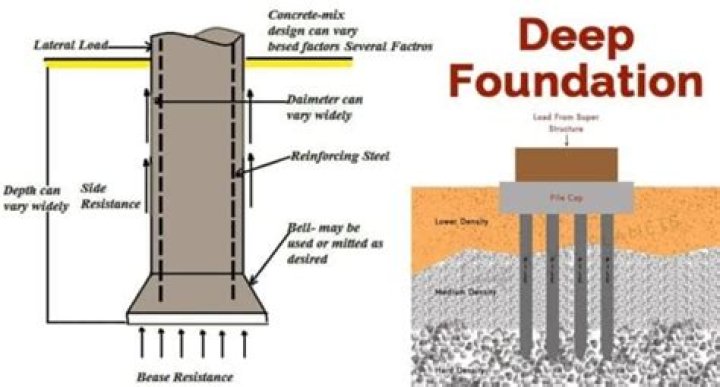

Pad foundation. Shallow foundations are typically used where the loads imposed by a structure are low relative to the bearing capacity of the surface soils. Deep foundations (more than 3 m from the surface) may be necessary where the bearing capacity of the surface soils is insufficient to support loads imposed.
