How a tunnel is built?

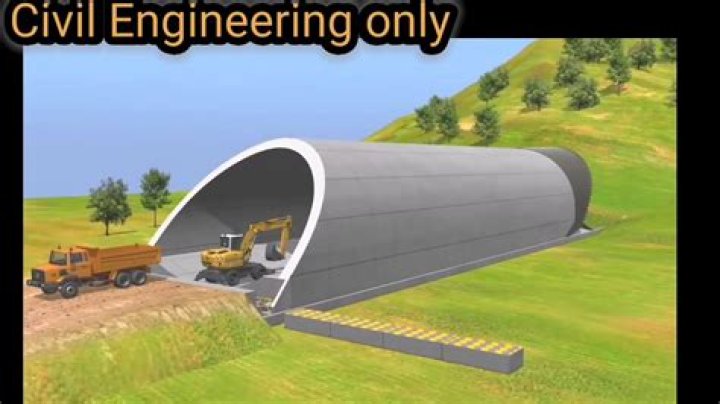

Tunnels are dug in types of materials varying from soft clay to hard rock. Cut-and-cover tunnels are constructed in a shallow trench and then covered over. Bored tunnels are constructed in situ, without removing the ground above. Finally, a tube can be sunk into a body of water, which is called an immersed tunnel.
How do you dig a tunnel without it collapsing?
You must establish either a vertical shaft or a horizontal shaft into the side of a hill. Dig it so that you have approximately twice as much earth above the tunnel as the height of the tunnel itself. Example: a 3-foot high tunnel will need 6 feet of earth above it. This will help avoid collapse.
How did they build the tunnel under the water?
To construct it, workers dug huge underwater ditches for two tunnels and lined them with rocks. They then lowered plugged-up pieces of the concrete tunnel into the ditches. To allow cars to drive through, the workers then unplugged the tunnel pieces.
What are the main methods of tunnel construction?
There are various types of construction techniques developed for construction of tunnels which are discussed below:
- Cut and cover method.
- Bored tunnel method.
- Clay kicking method.
- Shaft method.
- Pipe jacking method.
- Box jacking method.
- Underwater tunnels.
Why are tunnels not straight?
The reason for bends in road tunnels is to do with vision. The ambient light level is low in a tunnel. With a straight tunnel, a driver would be dazzled by the brightness of the light at the end of the tunnel, so curves are built so that the light level gradually increases.
Why is tunnel boring so expensive?
One reason tunnel digging in the US is so pricey is that labor costs there are much higher than in most other parts of the world.
What is the world longest underwater tunnel?
the Seikan tunnel
With its track located 140m below the seabed, the Seikan tunnel is the world’s deepest and longest railway tunnel. Approximately 23.3km of the tunnel lies under the seabed, making it the world’s longest undersea tunnel. Conceptual planning of the Seikan tunnel was completed during 1939-40.
What are tunneling techniques?
There are three basic types of tunnel construction in common use: Cut-and-cover tunnel, constructed in a shallow trench and then covered over. Bored tunnel, constructed in situ, without removing the ground above. Immersed tube tunnel, sunk into a body of water and laid on or buried just under its bed.
What is the method of tunneling?
In tunnel construction, we differentiate between two excavation methods: blasting and mechanised tunnelling using tunnel boring machines (TBMs). The choice of excavation method depends on various factors – e.g. route length, nature of the rock mass, economic framework conditions and planned construction period.
How can I build a tunnel without collapsing?
You can build a really strong wall to support the roof as you’re digging the tunnel. To prevent the tunnel from collapsing while you’re building the wall, you can put in some temporary pillars to hold up the roof for a short while. Two main methods for building tunnels are cut and cover and boring.
What’s the best way to build an underwater tunnel?
Another new method of creating underwater tunnels is the cut-and-cover method. To use this method, builders dig a trench in the riverbed or ocean floor. They then sink pre-made steel or concrete tubes in the trench.
What are the different methods of tunnel construction?
Methods of Tunnel Construction 1 Cut and cover method 2 Bored tunnel method 3 Clay kicking method 4 Shaft method 5 Pipe jacking method 6 Box jacking method 7 Underwater tunnels More
Where can I build my own wind tunnel?
Build Your own Wind Tunnel -courtesy of the “Take Off!” project at the Massachusetts Corporation for Educational Telecommunications There is also a gallery of photographs that students have taken during the construction and operation of their wind tunnels.
