Does G5RV require a balun?

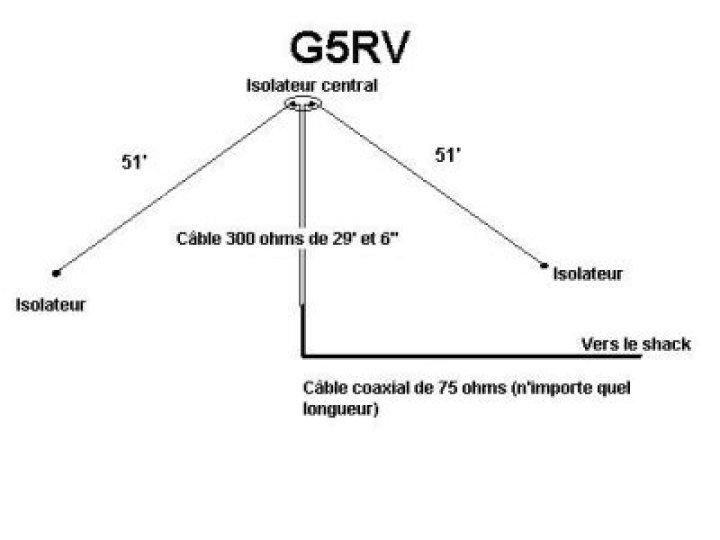

A balun or choke should NOT be used on a G5RV wire dipole. The classic G5RV 102 ft. wire dipole consists of 51 ft. This is why the originator recommended against using a choke or balun at the transition between the ladder line and the coax.
How does a current balun work?
Current baluns allow each output terminal’s voltage, with respect to “ground” or chassis, to float to any value required to provide equal currents to each feedline conductor. Current baluns are universal devices that work with balanced or unbalanced loads equally well.
How does a G5RV work?
7 MHz, 40 metres: On 40 metres the G5RV antenna operates using the top section plus nearly 5 metres of the matching section and it operates as a partially folded collinear array with two half waves in phase. Again the antenna presents a reactive load to any transmitter at its input.
How long is a full size G5RV?
102 feet
Standard G5RV antennas are 31 meters (102 feet) long, excluding feedline and matching section length, and can be used on 80, 40, 20, 15, and 10 meters. A half-length G5RV (51 feet long) can be used on 40, 20, 15, and 10 and is known as the G5RV Junior.
Whats the difference between a voltage balun and a current balun?
There are two general classes of baluns: the voltage balun and the current balun. The voltage balun forces equal voltage across the two sides of a balanced load and the current balun forces equal current through the two sides of a balanced load.
Do dipoles need a balun?
A dipole is what is termed a balanced antenna. In an ideal world a balun should be used with coaxial feeder (which is unbalanced) to make the transition between balanced and unbalanced systems. The use of a balun will prevent the coax radiating any power or picking up any noise.
How long is a half size G5RV?
SIGMA GR5V 1/2 Size Superior Poly Weave Wire Antenna The SIGMA G5RV Half Size HF Wire Antenna is an HF Amateur Band, Receive and Transmit Antenna, covering 40m to 10m bands. It’s overall length is 51ft , and should be fed with good quality 50 Ohms coaxial cable (recommended feed length of 45 or 90 ft).
How long is a G5RV Jr?
52 ft. long
You hear strong signals from a G5RV Jr. on every band, day and night. It’s no wonder… it’s an efficient multi-band antenna that’s only 52 ft. long–shorter than a 40 Meter dipole!
