Does black wire go to blue or brown?

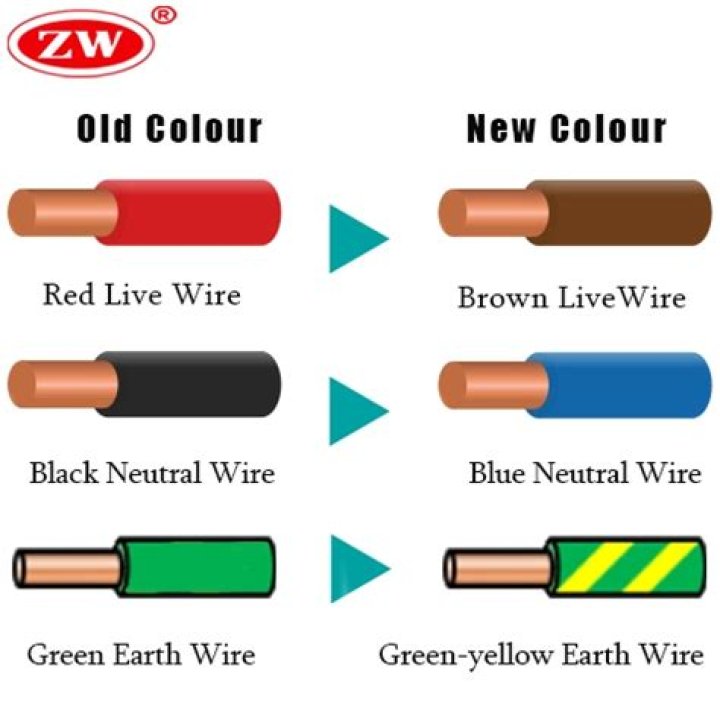

Answered by Dave, Electrical Safety Expert The live Red becomes Brown. The Neutral Black becomes Blue. The Earth wires continue to be Green and yellow.
How do you connect blue green and brown wires?
Brown is your hot wire so you want to connect that to your building’s black wire. The blue is negative or return, so that will go to white. Green with yellow stripe is the ground and will go to the building green.
Do I connect the blue wire to the black wire?
single Switch Ceiling Fan Wiring Note that the blue wire is connected to the black fan wire so that they can both be operated by the same switch. Connect the ceiling fan blue wire to both the black fan wire and the black wire from the ceiling. These wires are commonly green, yellow or bare copper.
Which is the live wire blue or green?
Table of UK plug wiring colours
| Wire | Colour |
|---|---|
| Live | Brown |
| Neutral | Blue |
| Earth | Yellow and Green |
Is brown wire live or neutral?
The new electrical wiring colours in the UK are green and yellow for the earth wire; brown for the live wire, and blue for the neutral wire.
Which color wires go together?
US, AC:The US National Electrical Code only mandates white (or grey) for the neutral power conductor and bare copper, green, or green with yellow stripe for the protective ground. In principle any other colors except these may be used for the power conductors.
Where do you connect the blue and brown wire?
The brown wire goes to the Live terminal which is connected to the fuse, which is on the right. The blue wire connects to the neutral terminal on the left of the plug.
What wire does the blue wire connect to?
Blue wire is for the light, if light is included with the fan. White wire is neutral. Green wire is for the ground. Red wire is sometimes included and acts as a conductor to carry power to the light kit.
What does blue wire mean?
Blue wire generally refers to a type of wire or cable that is added to a hardware product at a factory in order to resolve design problems. Blue wires are also known as bodge wires in British English.
What is green wire used for?
Green, Green-Yellow and Bare According to Mark Dawson, chief operating officer of Mister Sparky, “green insulated wires are used for grounding.” Green is the most common ground wire color, but “green-yellow” (green wire with a yellow stripe) and “bare” wire (copper wire without colored insulation) can also be used.
What do the colors of wire mean?
US AC power circuit wiring color codes The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.
What does brown wire mean?
Live
Brown = Live The brown wire has the function of carrying electricity to the appliance. If the brown wire is live and not connected to the earth or neutral wires there will be a risk of electrocution.
What is the green wire in an extension cord?
What is the green wire in an extension cord? The green wire is the ground wire, the white wire is the neutral wire, and the black wire is the hot wire. Similarly one may ask, what are the black white and green wires in a power cord?
What’s the color of the grounding wire on an AC cord?
AC Power Cord Color Codes. When an appliance or tool requires a three-prong grounded plug, connect the grounding wire (green) under the green terminal screw on the grounding prong; attach the black wire (hot) under the brass terminal screw and the white wire (neutral) under the silver terminal screw.
What are the new colours of electrical wiring?
The latest changes to wiring colours: The blue colour coded wire denoting the neutral cable changed from black to blue. The brown electrical wire now denotes the live wire and changed from red to brown. Green & Yellow. This has not changed and still denotes the earth wire.
What kind of wire is green with a yellow stripe?
Green with yellow stripe is the ground and will go to the building green. If you are running 220 volt or more then you will probably have multiple hot wires connecting to the fixture’s brown wire and Blue Wire.
What is the green wire in an extension cord? The green wire is the ground wire, the white wire is the neutral wire, and the black wire is the hot wire. Similarly one may ask, what are the black white and green wires in a power cord?
How do you wire a 3 prong extension cord?
Attach each section of exposed copper to the appropriate terminal screw: green wire to the green grounding screw, white (neutral) to the silver screw, and black (“hot”) to the brass screw. Wrap the wire clockwise around the terminal and tighten each screw securely. Reassemble the replacement plug and tighten the screws holding it to the cord.
AC Power Cord Color Codes. When an appliance or tool requires a three-prong grounded plug, connect the grounding wire (green) under the green terminal screw on the grounding prong; attach the black wire (hot) under the brass terminal screw and the white wire (neutral) under the silver terminal screw.
How to rewire green, black and white to 3 prong?
Use pliers to make a clockwise hook on the end of each wire. You’ll see three terminal screws. One is silver, one is brass and one is green. The white wire goes on the silver terminal, the black wire on the brass one and the green wire on the green one. Loosen each terminal screw, hook the wire around it and put the screw down tightly.
