Do worm gears have backlash?

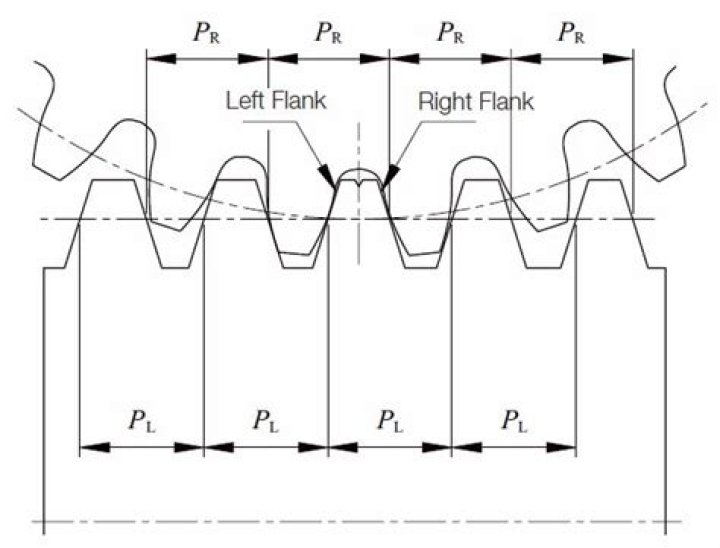

A Worm gear pair has a different circumferential backlash for each drive and driven gear (worm and wheel) and it is a feature of a worm gear pair. Table 6.5 Calculation example for backlash screw gear meshes.
How do you lower worm gear backlash?
The usual method of adjusting the backlash of a worm-gear assembly is to modify the center distance. Once assembled, such adjustment requires a major rework of the gearbox housing. One method for eliminating the backlash is to use a spring-loaded split worm or a spring-loaded split-worm wheel.
What is an anti backlash gear?
The split gear design incorporates springs, which force the floating gear in a direction opposite the rotation of the fixed gear, effectively enlarging the tooth width and overcoming the space, or backlash, between the teeth of the gear with which it is meshed. …
Can you Backdrive a worm gear?
Worm gears are often used for their ability to provide large speed reduction and high torque multiplication. In theory, as long as the coefficient of friction between the gear and the worm is larger than the tangent of the worm’s lead angle, the worm gear is considered self-locking and will not back drive.
How do you reduce backlash in rack and pinion?
The best way to reduce the backlash of a rack and pinion drive is to increase the quality of the teeth, as well as their mounting accuracy. To completely remove the backlash of a rack and pinion drive, a split-pinion or dual-pinion drive can be used, where one pinion drives while the other removes the backlash.
What is double enveloping worm gear?
Worm gear sets may be either single- or double-enveloping. In a single-enveloping set, the worm wheel is cut into a concave surface, thus partially enclosing the worm when meshed. The double-enveloping worm gear has more of the tooth surface in contact than the single-enveloping worm gear.
Why is backlash bad?
Backlash creates an issue in positioning when an axis changes direction. The slack in the threads/gears cause measureable error in axis positioning. The MachMotion software can compensate a small amount for this error and better track the true position.
Can worm gears slip?
Because the friction angle is larger than the lead angle, a worm gear with a 5-deg lead angle is considered statically self-locking. If, however, this self-locking reducer is subjected to shock and vibration, the friction coefficient between worm and gear may suddenly drop.
Can a worm wheel drive a worm gear?
Worm gear sets can be self-locking: the worm can drive the gear, but due to the inherent friction the gear cannot turn (back-drive) the worm. Typically only in ratios above 30:1.
What is rack and pinion backlash?
When the teeth fit together there is a small space between the tooth of the pinion and the groove between teeth on the rack. The small space causes some of the rotational energy to be lost in conversion. One way to decrease rack and pinion backlash is to be attentive to the teeth quality and arrangement.
Can the rack drive the pinion?
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack), which operate to translate rotational motion into linear motion. Driving the rack linearly will cause the pinion to be driven into a rotation.
