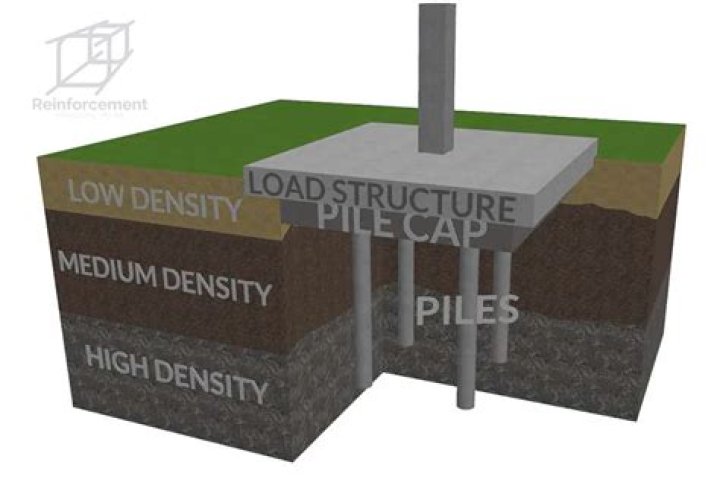

Do raft foundations need piles?

The addition of piles to a raft increases the effective size of a foundation and can help resist horizontal loads. This can improve the performance of the foundation in reducing the amount of settlement and differential settlement, as well as improving the ultimate load capacity.

What is the difference between raft and pile foundation?

Difference between raft and pile foundation The raft foundation or mat foundation is a prominent example of a shallow foundation. On the other hand, the pile foundation is an example of a deep foundation. This is one of the first and the most general point of difference between these two types of foundations.

What is combined pile raft foundation?

A combined pile raft foundation (CPRF) is a type of foundation which has the advantages of both shallow foundations (e.g., mat foundations) and deep foundations (e.g., pile foundations). The CPRF includes piles, raft (mat), subsoil and, occasionally, a cushion.

What are the advantages of raft foundation?

Advantages of Raft Foundation

• Raft foundations are constructed for shallow depths hence, it requires less excavation.
• Well suitable in soils of low bearing capacity.
• Loads coming from superstructure are distributed over a larger area.
• Differential settlement of soil can be reduced.

Is a raft foundation expensive?

Raft foundations are relatively inexpensive and fast to put down, when compared with other types of foundation. Ground excavations are less onerous than for trench excavations, for example, and the foundation and floor slab can often be combined, giving significant savings on materials and time.

Is raft foundation a deep foundation?

Mat or raft foundation is classified as a shallow foundation since its depth is considerably smaller than deep foundation, but its depth is greater than other types of shallow foundation.

Why pile foundation is expensive?

It is claimed that, the excavation cost of pile cap, capping beams and tie beams could be two times the cost of machine excavation in moderately large column bases. Not only does the pile foundation needs structural design but also required higher degree of supervision as the construction is progressed.

What is bored pile foundation?

Bored piles are cylindrical bodies made of concrete (with or without reinforcement) which are installed in the ground by a variety of methods. They transmit high structural loads into lower, load-bearing soils. The length, diameter, material, shape and layout of the piles can be varied according to their intended use.

What is piling mat?

A piling mat is a temporary working platform designed to provide a reliable and stable surface on which piling rigs and other ground treatment machinery can operate. Piling mats are typically constructed using well-graded stone, clean-crushed concrete, or crushed hard rock.

What are the disadvantages of a raft foundation?

Disadvantages of Raft Foundation

• Raft foundation is prone to edge erosion.
• Raft foundation requires more amount of reinforcement in some cases, and it will ultimately cost more.
• Skilled labours are required as compared to other foundation.

What is the minimum depth of raft foundation?

The minimum thickness of raft foundation is 300mm.
