Do capacitors have a polarity?

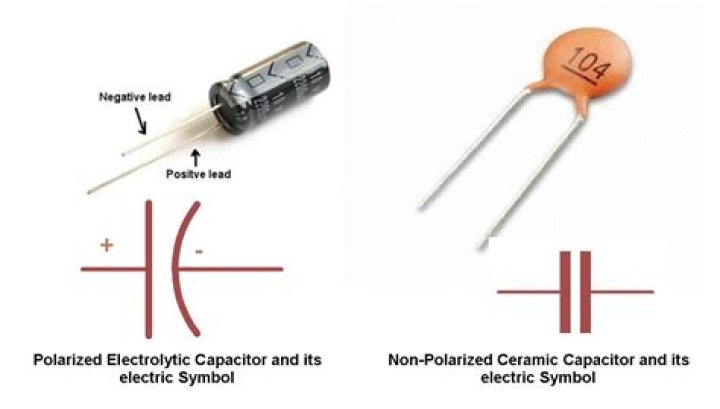

Capacitor Physical Size The electrolytic and tantalum capacitors are polarized (polarity sensitive), and are always labeled as such. Ceramic, mylar, plastic film, and air capacitors do not have polarity markings, because those types are nonpolarized (they are not polarity sensitive).
What happens if capacitor is reverse polarity in circuit?
If the polarity is reversed while connecting, the dielectric in the form of oxide layer is damaged. A heavy current flows, large amount of heat is generated, and capacitor is damaged. An explosion can result if it not provided with safety against explosion.
How do you check capacitor polarity with a multimeter?
To test the capacitor with a multimeter, set the meter to read in the high ohms range, somewhere above 10k and 1m ohms. Touch the meter leads to the corresponding leads on the capacitor, red to positive and black to negative. The meter should start at zero and then moving slowly toward infinity.
Does it matter which way round you connect a capacitor?
It does not matter which wire goes to which terminal. It does matter which wire goes where, if it has 3 terminals.
Why are capacitors polarized?
Electrolytic capacitors are polarized components due to their asymmetrical construction and must be operated with a higher voltage (ie, more positive) on the anode than on the cathode at all times. For this reason the polarity is marked on the device housing.
What may happen if a capacitor is connected with incorrect polarity?
AC or bipolar electrolytic capacitors have two anodes connected in reverse polarity. The destruction of electrolytic capacitors can have catastrophic consequences such as a fire or an explosion. If a polarized capacitor is installed incorrectly, the capacitor whistles then explodes.
Why do polarized capacitors explode?
If a high voltage greater than rated is applied across capacitor, its dielectric strength will break down and eventually capacitor will explode. # Electrolytic capacitors fail due to leakage or vaporization of the electrolyte inside. Wrong polarity connections of these capacitors can cause explosion or failure.
