Can solid state relay be used for DC?
Can a DC load be used with Solid-state Relays for AC loads? No, it cannot be used. The element characteristics of Solid-state Relays will not allow it to reset if a DC load is used.
What is DC solid state relay?

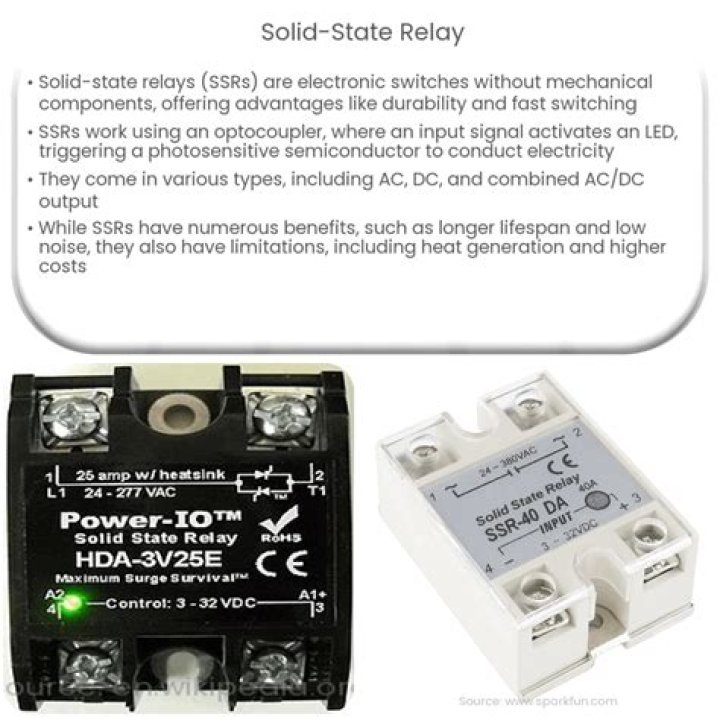

A solid state relay (SSR) is an electronic switching device that switches on or off when an external voltage (AC or DC) is applied across its control terminals. Solid-state relays have fast switching speeds compared with electromechanical relays, and have no physical contacts to wear out.
How do you wire a DC solid state relay?
Solid State Relay (DC/DC): Connect (R) positive terminal to the push button switch. Connect (R) negative terminal to the negative terminal on battery 1. Connect (L) positive terminal to the positive terminal on battery 2. Connect (L) negative terminal to the positive terminal on load.
How many amps can a solid state relay handle?
SSRs allow the switching of large loads via ultra-sensitive input power. A low level logic signal (TTL) can activate a switch for as much as 100 Amps. Completely quiet switching, beneficial in medical applications, environmental controls or other areas where quiet operation is desirable.
What is the difference between solid state relay and relay?
The main difference between solid state relays and general relays is that there is no movable contacts in solid state relay (SSR). Solid state relay (SSR) do not contain any mechanical contacts and are mostly of electronic parts. Thus, SSR have a wide range of features that mechanical relays do not have.
Where are solid state relays used?
The most common application of solid state relays is in the switching of an AC load, whether that is to control the AC power for ON/OFF switching, light dimming, motor speed control or other such applications where power control is needed, these AC loads can be easily controlled with a low current DC voltage using a …
What is a solid state relay used for?
AC output solid state relays are used to control the flow of electrical energy in alternating current power systems. The control (equivalent to electro-mechanical relay coil) voltages can be either AC or DC.
How does solid state relay works in temperature controller?
The SSRL Series solid state relays are used to control large resistance heaters in conjunction with temperature controllers. By applying a control signal, an SSR switches “on” the AC load current, just as the moving contacts do on a mechanical contactor. Three-phase loads can be controlled using 2 or 3 SSR’s.
Which is better solid state relay or mechanical relay?
Solid-state relays operate silently and produce little electrical interference. They are selected for quiet operation, because they do not make noise when the output contacts change states. Electromechanical relays create electromagnetic noise, because of contact arcing and can create interference in the power lines.
What are 3 types of solid state relays?
There are three basic categories of SSRs that electricians recognize: Reed Relay Coupled, Transformer Coupled, and Photo Coupled. The Reed Relay Coupled SSR has a control signal applied directly to the coil of a reed relay. When the reed switch closes it activates the circuitry which will trigger the thyristor switch.
Are solid state relays safe?
Bretz: Solid-state relays are the preferred choice for system reliability because they have no moving parts or contacts. Over time, the plating on the contacts inside EMRs can erode. This erosion can cause the contacts to weld shut; therefore they no longer open/close properly, and the relay has to be replaced.
