Can I plug Cat6 into Cat5e jack?

Can I plug Cat6 into Cat5e jack?

Will the Connections Work? Conductor size determines whether the connection is going to be reliable or not. Although Cat6 solid conductor cables usually contain 23 AWG wire, Cat5e cables with 24 AWG conductors should seat and connect properly in the Cat6 connector.

Are Cat5e and Cat6 jacks the same?

The only difference between Cat5e and Cat6 is the way the cable is made (Cat6 is more twisted and with better shielding). RJ45 terminators made for Cat5 may not fit Cat6 cable due to the thicker size of copper strand, but the pinouts are the same for both cables.

Are Cat5e and Cat6 connectors the same?

Cat-6 and Cat-5e should work with either type. The only thing you have to look out for is the crimper/plug combination. If you have used your current crimper/plug combo to make working cables in the past, it should still work with Cat-5, Cat-5e and Cat-6. They are exactly the same physically.

Are Cat5 and Cat6 crimpers the same?

The only thing you have to look out for is the crimper/plug combination. If you have used your current crimper/plug combo to make working cables in the past, it should still work with Cat-5, Cat-5e and Cat-6. Understand that you won’t be able to make something that’s cat6 just by using cat6 qualified components.

What is the difference between Cat5 and Cat6 cable?

The big difference between Cat5 and Cat6 cables is the amount of data that can be sent. Cat6 has a higher bandwidth compared to Cat5. You can compare this with a water pipe: more water can flow through a wide water pipe, should you compare it to a more narrow water pipe.

What is the difference between Cat5 and Cat 5e?

The difference between Cat5 and Cat5e is that the Cat5e has a higher throughput speed of 1,000 Mbit / s. Also called Gbit / s. This is 10 times faster than the throughput speed of a Cat5 cable. All systems that work with a Cat5 cable therefore also work with a Cat5e cable.

What type of connector is used with Cat 5e and Cat6 cables?

RJ45
Cat5, Cat5e and Cat6 are all seen. The cables use the cost efficient but effective RJ45 patch connector and using this, these Ethernet cables are able to link or patch multiple items of Ethernet based equipment together.

Can Cat 5 and Cat5e cables be mixed?

There’s no problem mixing different cable types other than making sure they are all properly rated for the fastest devices on the network.

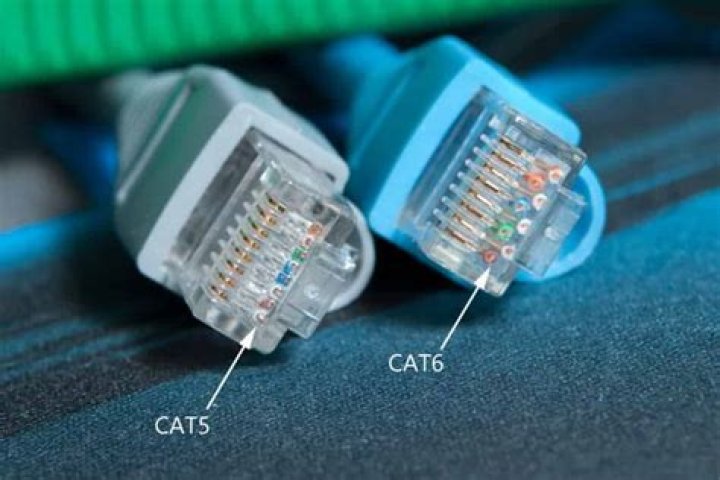

Is there a difference between Cat 5 and CAT 6 connectors?

The big difference is that Cat 5 uses AWG 24–26 cores and Cat 6 uses AWG 22–24. You can get Cat 6 cable into cat 5 plugs but it is tricky as the individual cores are very slightly thicker.
