Are fire dampers required in exterior walls?
6) Exterior Walls. Ducts and air transfer openings in fire-resistance rated exterior walls required to have protected openings in accordance with Section 704.14 shall be protected with listed fire dampers in accordance with their listing.
What is the difference between single skin and double skin?
Single Skin AHU: Fabricated out of 1.2 mm thick GI sheet which is then powder coated to prevent corrosion and rust formation. Double Skin AHU: Fabricated out of two 0.6 mm thick GI sheet within which high-quality PUF is injected for enhanced insulation.
Do you need a fire damper in a 30 minute wall?
Where a duct passes through a fire hazard room, but does not serve it, fire dampers are not required but the duct must have fire resistance of 30 minutes in respect to integrity and insulation. (figure 15 i.)
Does a 2 hour fire-rated wall require a fire damper?
If the air duct is an air transfer opening (meaning it is not fully ducted) at the fire-rated barrier, then the duct needs a fire damper where other openings are required to be protected as well. However, two-hour fire-rated barriers do require fire dampers in fully ducted HVAC systems.
Where fire dampers are required?
Generally, fire dampers are required where air ducts penetrate walls that are rated for 2-hours or more. They are needed in all air transfer openings (non-ducted) in rated walls, regardless of the rating. And they are required at some, but not all penetrations of rated floor assemblies and shaft enclosures.
What is single skin partition?
A Single skin partition wall is one made up of one layer only, used primarily in factory spaces to create office areas versus working areas. They are considered more cost effective for this purpose.
What is double skin FCU?
The special design of the Double Skin Fan Coil Units is combining both features of double skin panels as existing in air handling units and low airflow rates and cooling capacity the same like the single skin fan coil unit.
Where are the dampers located?
Dampers are usually found where the main trunk line connects to the round supply duct. These are the pieces of duct work that supplies air to the various areas of your home. You will most likely find a wing nut bolt or a lever that you can turn to adjust the position of the damper. Turn this to a full open position.
Does a 1 hour fire rated wall require a fire damper?
Q: Are fire dampers required in one-hour fire-rated walls if the facility is fully sprinkled? A: According to NFPA 90A (1999 edition), one-hour fire-rated barriers do not require fire dampers in fully ducted HVAC systems, unless the one-hour fire-rated barrier is a vertical shaft.
What is the difference between a fire damper and a fire smoke damper?

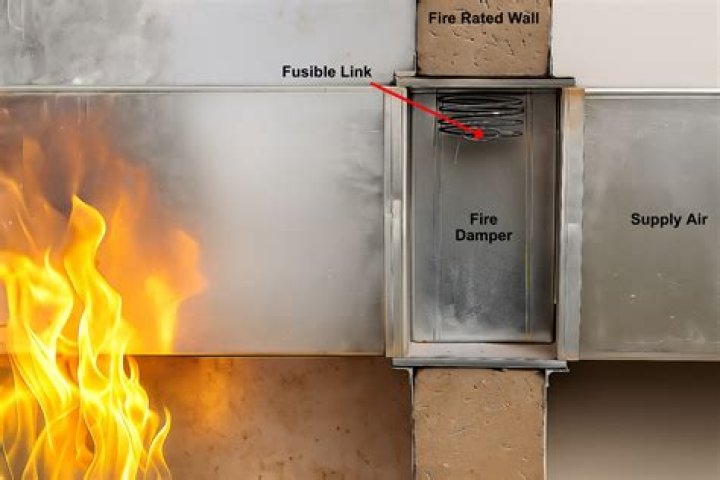

A fire damper closes once the duct temperature reaches a high enough level to melt a fusible link. A smoke damper closes upon the detection of smoke. It is UL leakage-rated to stop smoke in its tracks, which is a main difference from fire dampers.
