Are 4 prong to 3-prong dryer adapters Safe?

Are 4 prong to 3-prong dryer adapters Safe?

If you were to change from a four prong to a three prong and your dryer is designed to use 120 volts at some point, then that current will have to be returned on the ground leg. This is not acceptable by NEC code, nor is it safe.

Are dryer plug adapters Safe?

The 2 plug outlets indicate that a ground wire is not available, and most newer appliances do require a ground wire which ensures protection for the equipment and the user, so with this in mind I would advise you not to use an adapter for the dryer.

Are New dryers 3 or 4 prong?

The National Electrical Code currently requires 4-prong dryer outlets in all new home construction. Existing homes may still use 3-prong outlets. The switch to a 4-prong outlet was due to a flaw in the 3-prong outlet design. In a 3-prong outlet, the ground and neutral wires are contained in the same prong.

How do you wire a 4 wire to a 3 wire?

Connect the ground wire of the 3-wire cable to the ground wire of the 4-wire cable. Connect the black wire of the 3-wire circuit to either the red or the black wire of the 4-wire circuit. The red and black wires are the”hot” wires. Either wire can be used to power a circuit.

Can I change a 3 prong outlet to a 4 prong outlet?

If you want to replace your three-prong dryer outlet with a four-prong one, you have to run a ground wire back to the panel and connect it to the panel’s ground bus. You can simply replace the cord on your new dryer with one that’s compatible with the outlet.

Are 3-prong plug adapters Safe?

As long as an adapter plug makes contact with a grounded screw, using a three-prong adapter may be a relatively safe option, at least in the short term. Using an adapter with an ungrounded outlet increases the risk of serious electrical shock or electrocution from faulty or damaged products.

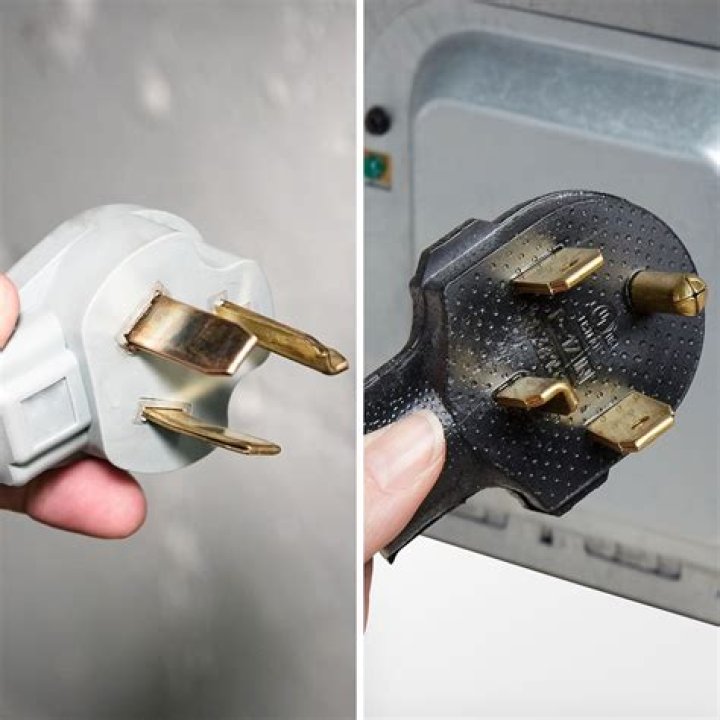

What’s the difference between 3-Prong and 4 prong?

The key difference between a 3-prong and 4-prong dryer hookup is the wiring. The 3-prong dryer hookup has only two hot wires and a neutral wire. On the other hand, the more modern 4-prong dryer hookup has two hot wires, a ground wire, and neutral wire. Plus, a 4-prong dryer hookup is wired as a 120/240-volt circuit.

Can I change a 3-prong outlet to a 4 prong outlet?

What happens if you don’t ground your dryer?

There are many things that can go wrong with a dryer that has been incorrectly ground. For example, your hot wire could cause your dryer to become live, causing electrocution or shock to anyone who touches it.
