Are 360 Mopar internally balanced?

Are 360 Mopar internally balanced?

All 360’s are externally balanced. The newer Magnum 360 are also externally balanced, but take a little less external weight because of lighter internal components. All 318’s are internal. Forged crank 340’s are internally balanced.

What is an externally balanced flywheel?

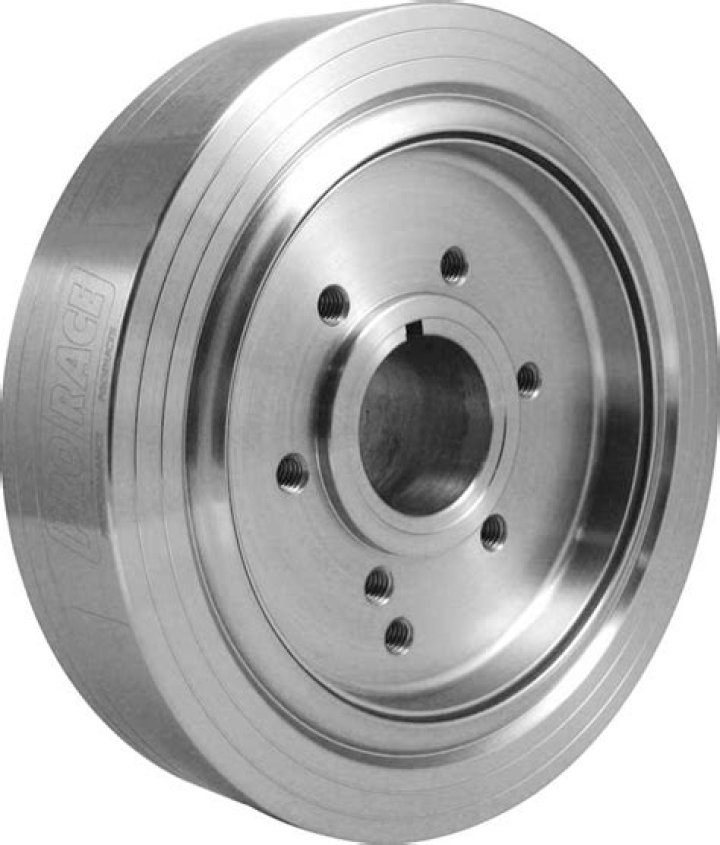

External Balance If the crank’s counterweights are too light, the engine must be externally balanced. This involves adding weight to the harmonic balancer and/or the flexplate or flywheel.

Is a Mopar 440 internally balanced?

Re: are 440’s internal or external balanced? The ’70 and ’71 440 HP engines are externally balanced due to the weight of the “heavy rods”, ’72 and later (except for the few 440+6) don’t need external balance even with the heavy rods because the piston weight is reduced.

Will a 318 flywheel fit a 360?

The 318, 340 & 440 manual flywheels will interchange. If you are asking for a flywheel for an automatic transmission, the 360 flywheels will have balance weights on the torque converter, while 318 & 340 flywheels will not.

Is a 360 externally balanced?

All 360’s are external balance. The 360LA is different than the 360 Magnum since the Magnum has lighter pistons, pins, rings… The balancer and flexplate must match the type of balance, whether internal, or external, LA, or Magnum. All 360’s are external balance.

Is a 5.9 Magnum internally balanced?

The torque converters are the same internally. The 318 is internally balanced and therefore uses no external weights. The 5.9L is externally balanced and uses a specific harmonic balancer and a weighted torque converteror flexplate.

What is external Balancing?

External balancing involves strengthening and enlarging one’s alliances and interstate cooperation in order to prevent a hegemon or counter a rising power.

Is a 454 internally or externally balanced?

All 396-, 402-, and 427-ci engines are internally balanced and all 454-ci and larger engines are externally balanced.

Will a 318 starter fit a 360?

The starter is the same for all the 360’s and 318’s. The different size flywheels are meant to be used with different bellhousings for different cars. Basically if you took the 318 from a vehicle that used a different transmission chances are it had a different flywheel for that bellhousing.

Are 5.2 and 5.9 transmissions the same?

Any ’96 or newer 5.2 or 5.9 transmission will work. The 5.9 flexplate has balance weight on it. The 5.2 is internally balanced and has no weight on the plate. You can use a 5.9 flexplate on a 5.2, just remove the weight.

Is external balance good?

A situation in which the money a country brings in from exports is roughly equal to the money it spends on imports. That is, external balance occurs when the current account is neither excessively positive nor excessively negative. An external balance is considered sustainable. …
